Product Summary

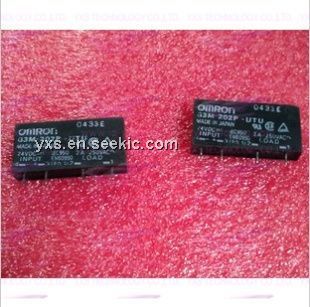

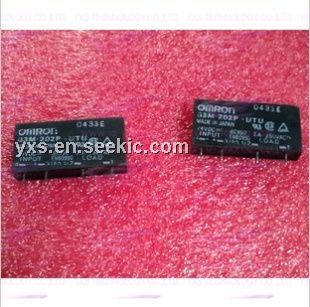

The G3M-202PL-UTU-24V is a Solid State Relay.



Parametrics

G3M-202PL-UTU-24V absolute maximum ratings: (1)Operate time: 1 ms max.; (2)Release time: 1/2 of load power source cycle + 1 ms max.; (3)Output ON voltage drop: 1.6 V (RMS)max.; (4)Leakage current: 2 mA max. (at 100 VAC); (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (6)Dielectric strength: 2,000 VAC, 50/60 Hz for 1 min; (7)Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude; (8)Shock resistance Malfunction: 1,000 m/s 2 (approx. 100G); (9)Ambient temperature Operating: –30°C to 80°C; Storage: –30°C to 100°C; (10)Ambient humidity Operating: 45% to 85%; (11)Weight: Approx. 15 g.

Features

G3M-202PL-UTU-24V features: (1)2, 3 and 5A single in-line package SSR; (2)Thin design for high-density PCB applications.; (3)DC input-AC output for up to a 5-A load.; (4)Certified by UL, CSA, and VDE.

Diagrams

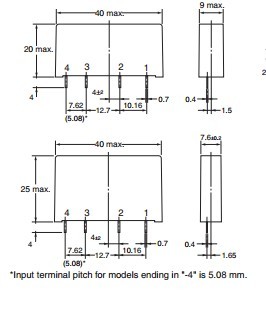

G3M-202PL-UTU-24V pin connection
