Product Summary

The G3MC-201PL-12V is a solid state relay.

Parametrics

G3MC-201PL-12V absolute maximum ratings: (1)Rated load voltage: 100 to 240 VAC; (2)Load voltage range: 75 to 264 VAC; (3)Load current: 0.1 to 1 A; (4)Surge current: 8 A (60 Hz, 1 cycle).

Features

G3MC-201PL-12V features: (1)Small bottom surface area and ideal for close PCB mounting; (2)DC input and AC output for an applicable load of 1A at 40°C; (3)Compact, thin--profile SSR of monoblock construction with an all--in--one frame incorporates a PCB, terminals, and a heatsink; (4)VDE certified models available.

Diagrams

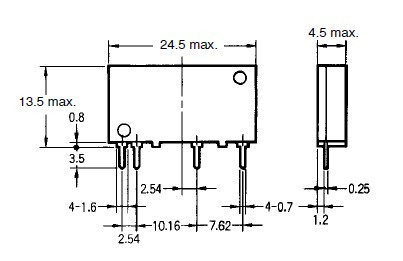

G3MC-201PL-12V pin connection
