The JQ1AP-24V is a small power relay. The typical applications of the device include air conditioners, refrigerators, microwave ovens and heaters.
Parametrics
JQ1AP-24V absolute maximum ratings: (1)Coil resistance: 2.88 kΩ; (2)Coil voltage: 24.0 V; (3)Contact current rating: 10.0A; (4)Size-Height: 15.6 mm; (5)Size-Length: 20.0 mm; (6)Size-Width: 10.0 mm; (7)Contacts type: SPST-NO; (8)Lead-Free status: Lead free; (9)Mounting type: Through hole; (10)Packaging: Bulk; (11)RoHS: Compliant.
Features
JQ1AP-24V features: (1)High electrical noise immunity; (2)High switching capacity in a compact package; (3)High sensitivity: 200 mW (1a), 400 mW (1c); (4)High surge voltage: 8,000 V between contacts and coil; (5)UL, CSA, VDE, SEMKO approved and TUV available; (6)Class B coil insulation type also available.

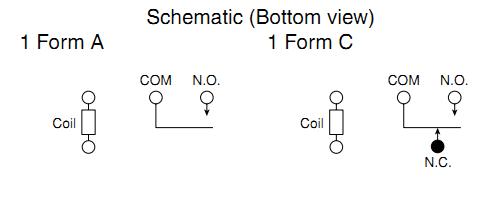

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 JQ1AP-24V |
Panasonic Electric Works |
General Purpose / Industrial Relays 10A 24VDC SPST-NO HIGH CAP |
Data Sheet |
|
|
||||||||||||
|
JQ1AP-24V-F |
Panasonic Electric Works |
General Purpose / Industrial Relays 10A 24VDC SPST-NO HIGH CAP |
Data Sheet |
|
|
||||||||||||
