Product Summary

DS2E-M-DC5V is a kind of Low Signal Relay.Typical applications include: (1)Telecommunication equipment; (2)Office equipment; (3)Computer peripherals; (4)Security equipment; (5)Measuring instrumentation.

Parametrics

DS2E-M-DC5V absolute maximum ratings: (1)Arrangement: 1, 2 , 4 Form C; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1 A): 50 mΩ; (3)Contact material: Gold-clad sliver; (4)Max. switching power: 60 W, 125 VA; (5)Max. switching voltage: 220 V DC, 250 V AC; (6)Max. switching current: 2 A DC, AC; (7)Max. carrying current: 3 A DC, AC.

Features

DS2E-M-DC5V features: (1)High sensitivity: 200 mW pick-up power; 100 mW pick-up power types available; (2)Latching types available; (3)High switching capacity: 60 W, 125 V A; (4)High breakdown voltage: 1,500 V FCC surge between open contacts; 1,000 V AC between open contacts; (5)DIP-1C type can be used with 14 pin IC socket: 2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets; (6)Gold-cap silver palladium types available for 2 Form C type.

Diagrams

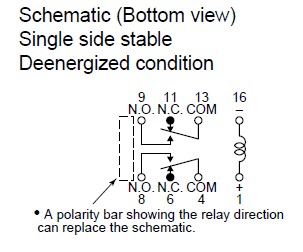

DS2E-M-DC5V circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS2E-M-DC5V
DS2E-M-DC5V
Panasonic Electric Works
Low Signal Relays - PCB 2A 5VDC DPDT SEALED PCB
Data Sheet
0-1: $2.15
1-25: $2.09
25-50: $1.94
50-100: $1.63
DS2E-M-DC5V-R
DS2E-M-DC5V-R
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C, 5VDC 2 Form C 400mW Type
Data Sheet
Negotiable
DS2E-M-DC5V-TB
DS2E-M-DC5V-TB
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C, 5VDC 2 Form C 400mW Type
Data Sheet
Negotiable
DS2E-M-DC5V-R-TB
DS2E-M-DC5V-R-TB

RELAY GENERAL PURPOSE DPDT 2A 5V
Data Sheet
Negotiable
