Product Summary
The G6C-2114p-12v is one kind of power PCB relay.
Parametrics
G6C-2114p-12v absolute maximum ratings: (1)Release time: 10 ms max. (mean value: approx. 2 ms); (2)Operate (set) time: 10 ms max. (mean value: approx. 5 ms); (3)Humidity: 45 to 85% RH; (4)Weight: Approx. 5.6 g (0.20 oz); (5)Service life: 50 million operations min. (at operating frequency of 18,000 operations/hour).
Features
G6C-2114p-12v features: (1)Subminiature 20.07 L x 14.99 W x 9.91 H mm (0.79 L x 0.59 W x 0.39 H in); (2)Low power consumption (200 mW); (3)Semi-sealed and sealed types available; (4)Unique moving magnet armature (Moving Loop System) reduces relay size, magnetic interference, and contact bounce time; (5)Single and double-winding latching types available; (6)High sensitivity in a compact package; (7)Long life assured by high contact pressure.

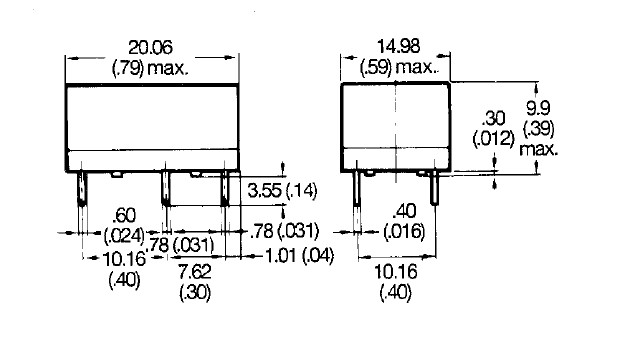

Diagrams
