Product Summary
The UDN2580A is an 8-channel source driver. It will work with many combinations of logic- and load-voltage levels, meeting interface requirements beyond the capabilities of standard logic buffers. The UDN2580A can drive incandescent, LED, or vacuum fluorescent displays. Internal transient-suppression diodes permit the drivers to be used with inductive loads such as relays, solenoids, dc and stepping motors, and magnetic print hammers.
Parametrics
UDN2580A absolute maximum ratings: (1)Output Voltage, VCE: 50 V; (2)Supply Voltage, VS (ref. sub.): 50 V; (3)Input Voltage, VIN (ref. VS): -30 V; (4)Total Output Current, (lC + IS): -500 mA; (5)Substrate Current ISUB: 3.0 A; (6)Package Power Dissipation, PD: 1.0 W; (7)Operating Temperature Range, TA: -20℃ to +85℃; (8)Storage Temperature Range, TS: -55℃ to +150℃.
Features
UDN2580A features: (1)TTL, CMOS, PMOS, NMOS Compatible; (2)High Output-Current Rating; (3)Internal Transient Suppression; (4)Efficient Input /Output Structure; (5)Through-Hole and Surface-Mount Packages.

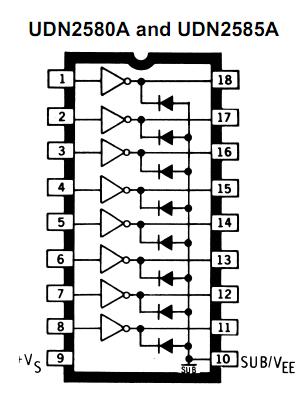

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

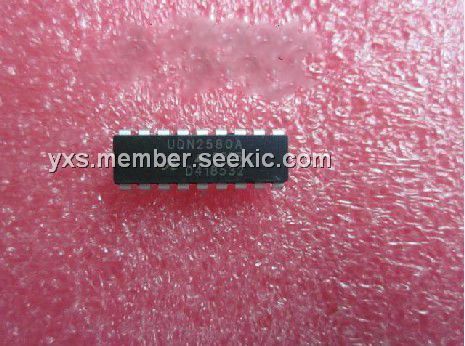

![]() UDN2580A |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
