Product Summary

The AFB0412HA is a DC fan.

Parametrics

AFB0412HA specifications: (1)Rated Voltage: 12VDC; (2)Operating Voltage Range: 9.5 to 13.8VDC; (3)Rated Current: 0.09Amp; (4)Rated Input Power: 1.08Watt; (5)Speed: 6600R.P.M.; (6)Maximum Air Flow: 0.16m3/min; 5.71CFM; (7)Maximum Air Pressure: 4.72mmH2O; 0.186IN H2O; (8)Noise: 35.0dB-A.

Features

AFB0412HA features: (1)Bearing Type Two Ball Bearings; (2)Material Impeller & Frame : Plastic (UL 94V-0); (3)Lead Wires: UL 1007 AWG #28 Or Equivalent, Red Wire Positive(+), Black Wire Negative (–); (4)Weight: 20g (0.71 OZ); (5)Rib Type Only.

Diagrams

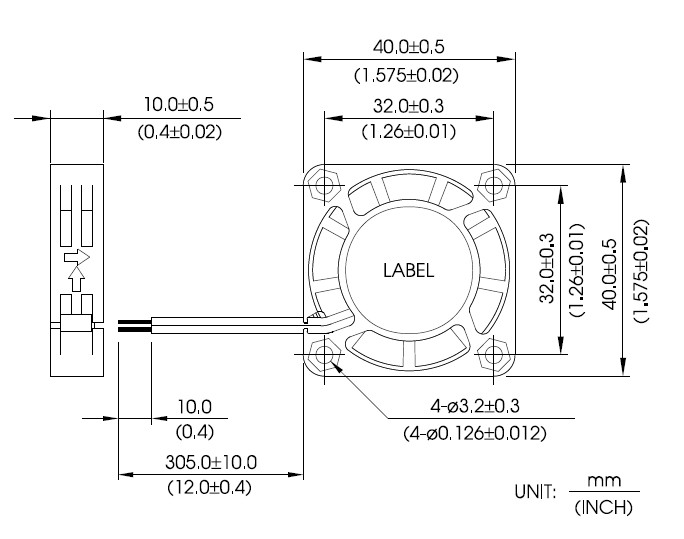

AFB0412HA dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

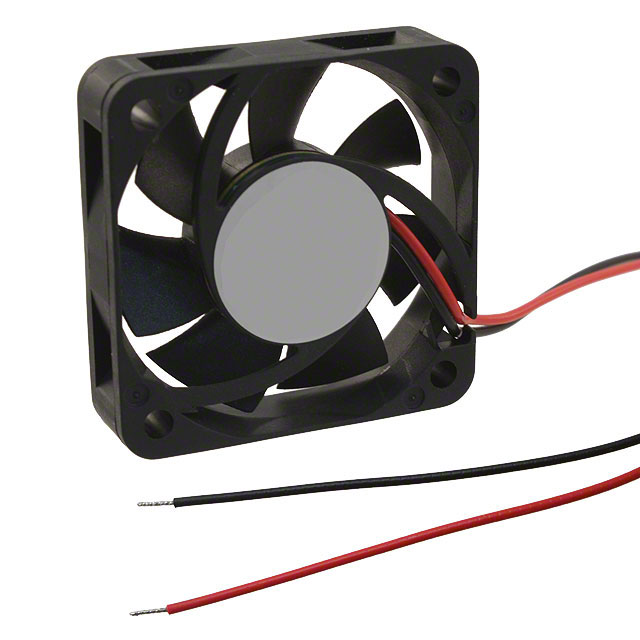

AFB0412HA-A
AFB0412HA-A


12V DC FAN 40X40X10 MM

Data Sheet

0-1: $5.53
1-10: $5.06
10-25: $4.23
25-50: $3.88
50-100: $3.41
100-250: $3.18
250-500: $2.94
500-1000: $2.82
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AFB02512HA-A
AFB02512HA-A


12V DC FAN 25X25X10 MM

Data Sheet

0-1: $6.77
1-10: $6.19
10-25: $5.18
25-50: $4.75
50-100: $4.18
100-250: $3.89
250-500: $3.60
500-1000: $3.46
AFB02512HHA
AFB02512HHA


FAN DC AXIAL 12V 25X10 13000RPM

Data Sheet

Negotiable
AFB02512HHA-A
AFB02512HHA-A


FAN DC AXIAL 12V 25X10 13000RPM

Data Sheet

0-1: $6.77
1-10: $6.19
10-25: $5.18
25-50: $4.75
50-100: $4.18
100-250: $3.89
250-500: $3.60
500-1000: $3.46
AFB02512HHA-AF00
AFB02512HHA-AF00


FAN DC AXIAL 12V 25X10 13000RPM

Data Sheet

0-735: $3.79
AFB0305HA-A
AFB0305HA-A


FAN DC 5V 30X30X10 MM

Data Sheet

0-1: $6.77
1-10: $6.19
10-25: $5.18
25-50: $4.75
50-100: $4.18
100-250: $3.89
250-500: $3.60
500-1000: $3.46
AFB0305HA-AF00
AFB0305HA-AF00


FAN DC 5V 30X30X10 MM

Data Sheet

0-1: $7.12
1-10: $6.51
10-25: $5.45
25-50: $5.00
50-100: $4.39
100-250: $4.09
250-500: $3.79
500-1000: $3.64
