Product Summary

The S29GL128P90TFIR is a Mirrorbit Flash product fabricated on 90 nm process technology. The S29GL128P90TFIR offers a fast page access time of 25 ns with a corresponding random access time as fast as 90 ns. The S29GL128P90TFIR features a Write Buffer that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes the S29GL128P90TFIR ideal for today’s embedded applications that require higher density, better performance and lower power consumption.

Parametrics

S29GL128P90TFIR absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65 to +150℃; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground, All Inputs and I/Os except as noted below:–0.5 V to VCC + 0.5 V; VCC: –0.5 V to +4.0 V; VIO: –0.5V to +4.0V; A9 and ACC: –0.5 V to +12.5 V; (4)Output Short Circuit Current: 200 mA.

Features

S29GL128P90TFIR features: (1)Single 3V read/program/erase (2.7-3.6 V); (2)Enhanced VersatileI/O control: All input levels (address, control, and DQ input levels) and outputs are determined by voltage on VIO input. VIO range is 1.65 to VCC; (3)90 nm MirrorBit process technology; (4)8-word/16-byte page read buffer; (5)32-word/64-byte write buffer reduces overall programming time for multiple-word updates; (6)Secured Silicon Sector region: 128-word/256-byte sector for permanent, secure identification through an 8-word/16-byte random Electronic Serial Number; Can be programmed and locked at the factory or by the customer; (7)Uniform 64Kword/128KByte Sector Architecture; (8)100,000 erase cycles per sector typical; (9)20-year data retention typical.

Diagrams

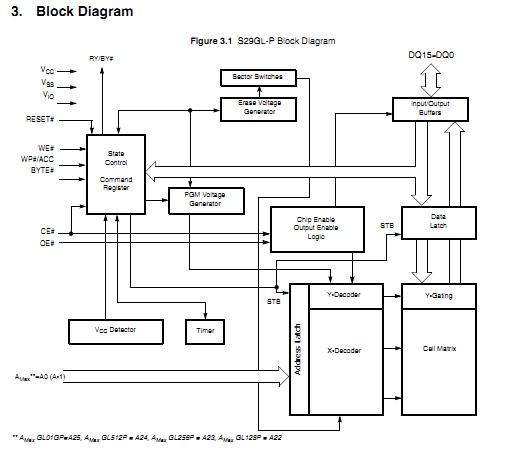

S29GL128P90TFIR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S29GL128P90TFIR10
S29GL128P90TFIR10

Spansion

Flash 3V 128Mb Mirrorbit highest address 90ns

Data Sheet

0-1: $2.48
1-25: $2.36
25-100: $2.28
100-500: $2.17
S29GL128P90TFIR13
S29GL128P90TFIR13

Spansion

Flash 128M 3.0V 90ns Page-Mode Sim R/W

Data Sheet

0-1000: $2.28
S29GL128P90TFIR20
S29GL128P90TFIR20

Spansion

Flash 3V 128Mb Mirrorbit lowest address 90ns

Data Sheet

0-1: $2.48
1-25: $2.36
25-100: $2.28
100-500: $2.17
