Product Summary

The PLL1707 is a low cost, phase-locked loop (PLL) multiclock generator. It can generate four system clocks from a 27-MHz reference input frequency. It is suitable for HDD + DVD Recorders, DVD Recorders, HDD Recorders, DVD Players, DVD Add-On Cards for Multimedia PCs, Digital HDTV Systems and Set-Top Boxes.

Parametrics

PLL1707 absolute maximum ratings: (1)Supply voltage:4V; (2)Supply voltage differences: ±0.1V; (3)Ground voltage differences: ±0.1V; (4)Digital input voltage: -0.3V to (VDD + 0.3)V; (5)Analog input voltage: -0.3V to (VCC + 0.3)V; (6)Input current (any pins except supplies): ±10 mA; (7)Ambient temperature under bias: 0℃to 125℃ (8)Storage temperature: -5℃to 150℃ (9)Junction temperature:150℃ (10)Lead temperature (soldering):260℃ 5 s; (11)Package temperature (IR reflow, peak):260℃.

Features

PLL1707 features: (1)27-MHz Master Clock Input; (2)Zero PPM Error Output Clocks; (3)Low Clock Jitter: 50 ps (Typical); (4)3.3-V Single Power Supply.

Diagrams

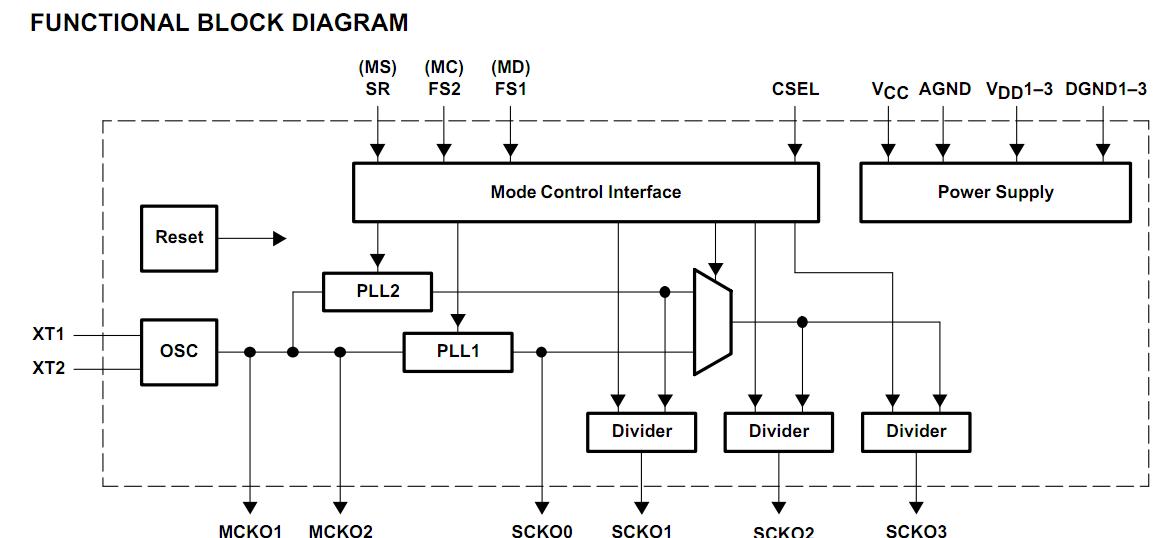

PLL1707 functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

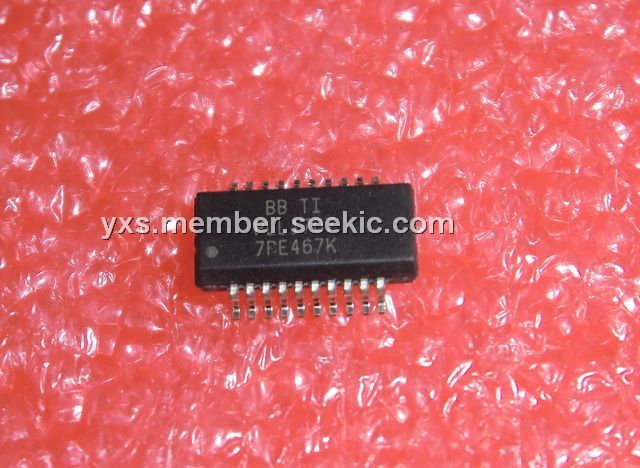

PLL1707
PLL1707

Other


Data Sheet

Negotiable
PLL1707DBQ
PLL1707DBQ

Texas Instruments

Clock Generators & Support Products 3.3 V Dual PLL Multi Clock Gen

Data Sheet

0-1: $2.36
1-25: $2.15
25-100: $1.94
100-250: $1.79
PLL1707DBQG4
PLL1707DBQG4

Texas Instruments

Clock Generators & Support Products 3.3V Dual PLL Multi- Clock Gen

Data Sheet

0-1: $2.36
1-25: $2.15
25-100: $1.94
100-250: $1.79
PLL1707DBQR
PLL1707DBQR

Texas Instruments

Clock Generators & Support Products 3.3V Dual PLL Multi- Clock Gen

Data Sheet

0-1480: $1.18
1480-2000: $1.13
2000-5000: $1.09
PLL1707DBQRE4
PLL1707DBQRE4

Texas Instruments

Clock Generators & Support Products 3.3V Dual PLL Multi- Clock Gen

Data Sheet

0-1480: $1.18
1480-2000: $1.13
2000-5000: $1.09
PLL1707DBQRG4
PLL1707DBQRG4

Texas Instruments

Clock Generators & Support Products 3.3V Dual PLL Multi- Clock Gen

Data Sheet

0-1480: $1.18
1480-2000: $1.13
2000-5000: $1.09
PLL1707IDBQRQ1
PLL1707IDBQRQ1

Texas Instruments

Clock Generators & Support Products AC 3.3 V Dual PLL Multi-Clock Gen

Data Sheet

0-1485: $1.25
1485-2000: $1.21
2000-5000: $1.16
