Product Summary

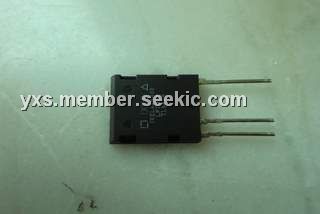

The IXEL40N400 is a Very High Voltage IGBT. The applications of IXEL40N400 are: Capacitor Discharge, Pulser Circuits.

Parametrics

IXEL40N400 absolute maximum ratings: (1)VCES TJ = 25℃ to 125℃: 4000 V; (2)VGES Continuous: ±20 V; (3)VGEM Transient: ±30 V; (4)IC90 TC = 90℃: 40 A; (5)ICM Pulse Width Limited by TJM, 1ms, VGE = 20V: 250 A; (6)PC TC = 25℃: 380 W; (7)TJ: - 40 to +125 ℃; (8)TJM: 125 ℃; (9)Tstg: - 40 to +125 ℃; (10)TL Maximum Lead Temperature for Soldering: 300 ℃; (11)TSOLD 1.6 mm (0.062 in.) from Case for 10s: 260 ℃; (12)VISOL IISOL < 1mA, 50/60 Hz, t = 1 minute: 4000 V.

Features

IXEL40N400 features: (1)Silicon Chip on Direct-Copper Bond (DCB) Substrate; (2)Isolated Mounting Surface; (3)4000V Electrical Isolation; (4)UL Recognized Package; (5)High Peak Current Capability; (6)Low Saturation Voltage; (7)Molding Epoxies Meet UL 94 V-0 Flammability Classification.

Diagrams

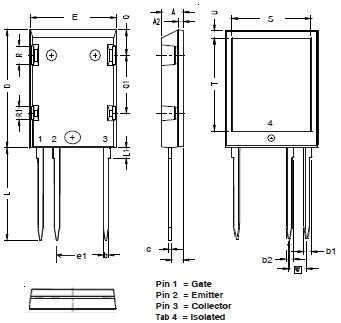

IXEL40N400 Outline
