Product Summary

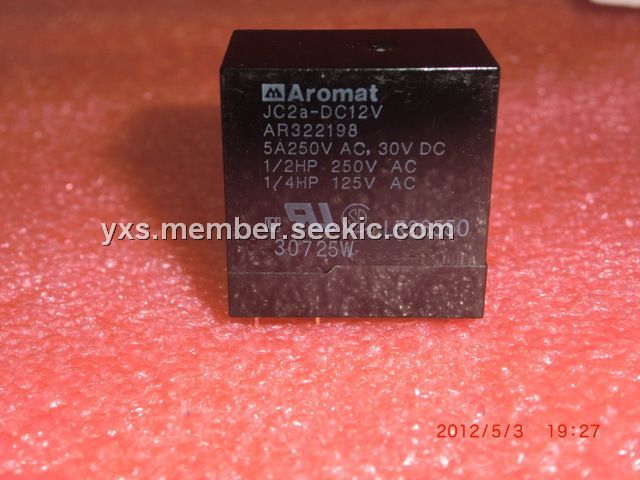

The JC2a-DC12V is a wide variation power relay. It is suitable for Automatic garage door openers, Microwave ovens, Dryers, Vending machines, Copiers, Air conditioners, Stereo equipment, TV sets.

Parametrics

JC2a-DC12V absolute maximum ratings: (1)nominal coil voltage: 12Vdc; (2)PICK-UP VOTLAGE: 80%V or less of nominal votlage; (3)drop-out voltage: 10%V or more of nominal votlage; (4)nominal operating current: 83.3mA; (5)coil resistance: 144Ω; (6)nominal operating power: 1.0W; (7)max applied votlage: 110%V of nominal voltage.

Features

JC2a-DC12V features: (1)High inrush current capability; (2)High dielectric withstanding for transient protection: JC can withstand 10,000 V surge in μs between coil and contact; (3)UL, CSA, VDE, TüV, SEMKO also approved.

Diagrams

JC2a-DC12V schematic
