Product Summary
The LTC1485CS8 is a differential bus transceiver, designed for multipoint data transmission standard RS485 application with extended common-mode range (12V to 7V). It also meets the requirements of RS422.The CMOS with Schottky design offers significant power saving over its bipolar counterpart without sacrificing ruggedness against overload or ESD damage.The applications of the LTC1485CS8 include low power RS485/RS422 transceiver, level translator.
Parametrics
LTC1485CS8 absolute mixmum ratings: (1)Supply voltage (VCC): 12V; (2)Control input voltages: －0.5V to VCC + 0.5V; (3)Control input currents:－50mA to 50mA; (4)Driver input voltages:－0.5V to VCC + 0.5V; (5)Driver input currents: －25mA to 25mA; (6)Driver output voltages: ±14V; (7)Receiver input voltages: ±14V; (8)Receiver Output Voltages: －0.5V to VCC + 0.5V; (9)Operating temperature range, LTC1485C: 0 ℃ to 70℃; (10)Storage temperature range: －65℃to 150℃; (11)Lead temperature (soldering, 10 sec.): 300℃.
Features
TC1485CS8 features: (1)ESD protection over ±10kV; (2)Low power: ICC = 1.8mA Typ; (3)28ns typical driver propagation delays with 4ns skew; (4)Designed for RS485 or RS422 applications; (5)Single 5V supply; (6)–7V to 12V bus common-mode range permits ±7V ground difference Between devices on the bus; (7)Thermal shutdown protection; (8)Power-up/down glitch-free driver outputs; (9)Driver maintains high impedance in three-state or with the power off; (10)Combined impedance of a driver output and receiver allows up to 32 transceivers on the bus; (11)60mV typical input hysteresis; (12)Pin compatible with the SN75176A, DS75176A, and SN75LBC176.

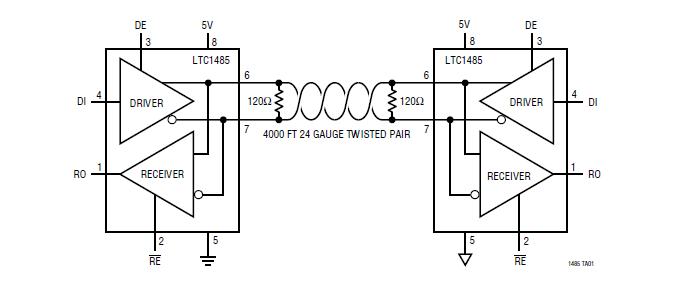

Diagrams

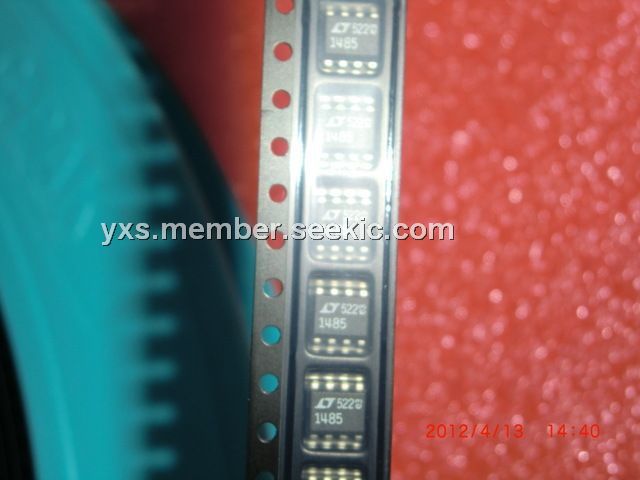

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1485CS8 |
|
IC TXRX DIFFERNTIAL BUS 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1485CS8#PBF |
|
IC TXRX DIFFERNTIAL BUS 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1485CS8#TR |
|
IC TXRX DIFFERNTIAL BUS 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1485CS8#TRPBF |
|
IC TXRX DIFFERNTIAL BUS 8-SOIC |
Data Sheet |
|
|
||||||||||
