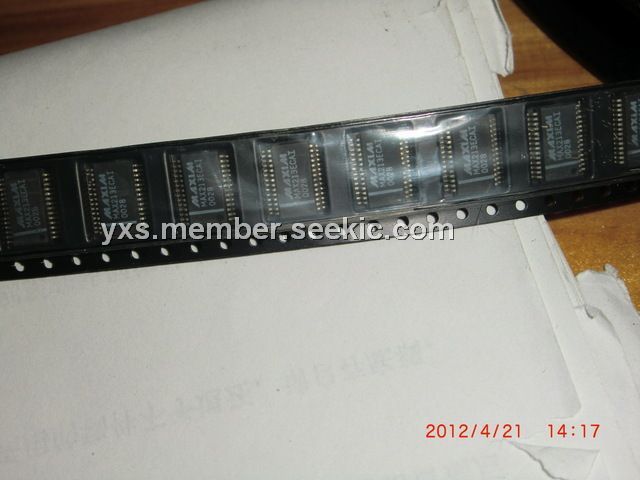

Product Summary

The MAX213ECAI is a transceiver, designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The applications of the MAX213ECAI include notebook, subnotebook, and palmtop computers, battery-powered equipment, hand-held equipment.

Parametrics

MAX213ECAI absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Input Voltages, T_IN: -0.3V to (V+ + 0.3V); R_IN: ±30V; (5)Output Voltages, T_OUT: (V- - 0.3V) to (V+ + 0.3V); R_OUT: -0.3V to (VCC + 0.3V); (6)Short-Circuit Duration, T_OUT: Continuous; (7)Continuous Power Dissipation: 842mW; (8)Operating Temperature Ranges: 0℃ to +70℃; (9)Storage Temperature Range: -65℃ to +165℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

MAX213ECAI features: (1)For low-voltage applications: ±15kV ESD-protected down to 10nA, +3.0V to +5.5V, Up to 1Mbps, true RS-232 transceivers; (2)For low-power applications: 1μA supply current, true +3V to +5.5V RS-232 transceivers with Auto shutdownTM; (3)For space-constrained applications: ±15kV ESD-protected, 1μA, 250kbps, +3.0V/+5.5V, Dual RS-232 transceivers with internal capacitors; (4)For low-voltage or data cable applications: +2.35V to +5.5V, 1μA,2Tx/2Rx RS-232 transceivers with ±15kV ESDprotected I/O and logic pins.

Diagrams

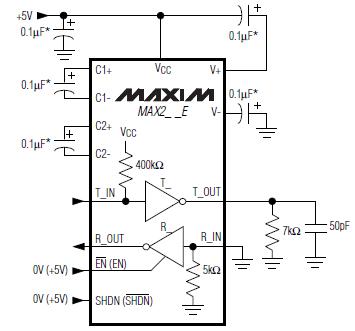

MAX213ECAI block diagram
