Product Summary

The LP3984IMFX-1.8 Micropower is designed for portable and wireless applications with demanding performance and space requirements. The LP3984IMFX-1.8’s performance is optimized for battery powered systems to deliver extremely low dropout voltage and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The applications of the LP3984IMFX-1.8 include CDMA cellular handsets, Wideband CDMA cellular handsets, GSM cellular handsets, Portable information appliances.

Parametrics

LP3984IMFX-1.8 absolute maximum ratings: (1)VIN,VOUT, VEN: -0.3 to 6.5V; (2)Junction Temperature: 150℃; (3)Storage Temperature: -65℃ to +150℃; (4)Lead Temp: 235℃; (5)Pad Temp: 235℃; (6)Power Dissipation: 220℃/W; (7)Maximum Power Dissipation: SOT23-5 364mW, Micro SMD 235mW.

Features

LP3984IMFX-1.8 features: (1)Miniature 4-I/O micro SMD and SOT-23-5 package; (2)Logic controlled enable; (3)Stable with tantalum capacitors; (4)1 μF Tantalum output capacitor; (5)Fast turn-on; (6)Thermal shutdown and short-circuit current limit.

Diagrams

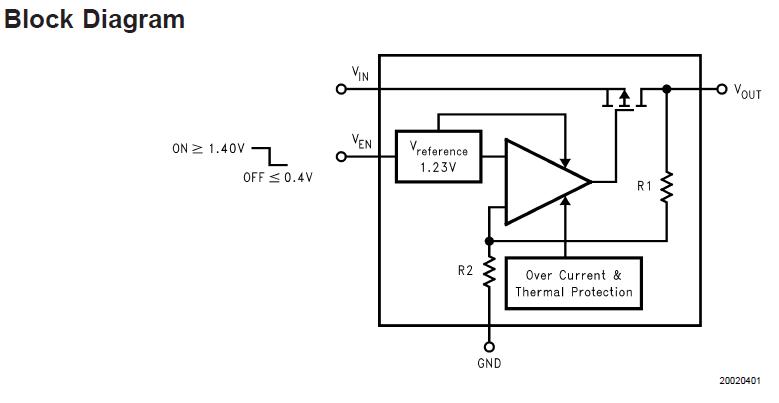

LP3984IMFX-1.8 block diagram
