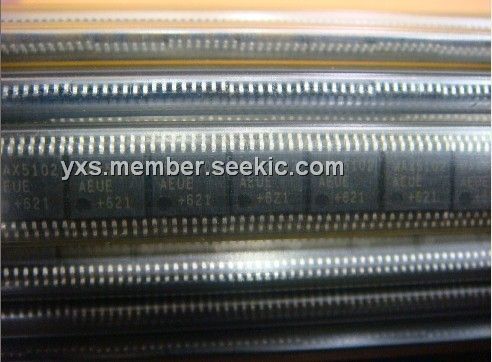

MAX5102AEUE

digital-to-analog converter, SMD, 8-bit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.10~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.10~3.20

PartNumber:: MAX5102AEUE

Brand:: Maxim Integrated Products - Maxim | Pack: SMD | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-28

From Other Seller

Part Number:MAX5102AEUE
US $2.10 - 3.20
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

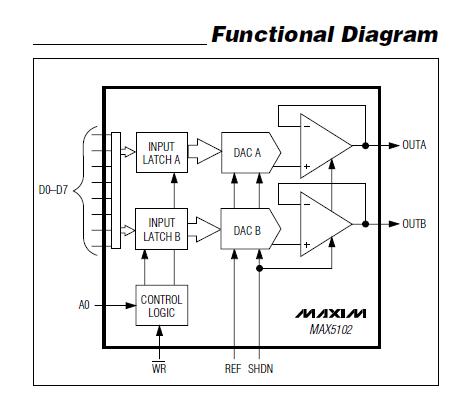

The MAX5102AEUE is a parallel-input, voltage-output, dual 8-bit digital-to-analog converter (DAC). It operates from a single +2.7V to +5.5V supply and comes in a space-saving 16-pin TSSOP package. The MAX5102AEUE has separate input latches for each of its DACs. Data is transferred to the input latches from a common 8-bit input port. It is individually selected through address input A0 and are updated by bringing WR low. The MAX5102AEUE features a shutdown mode that reduces current to 1nA, as well as a power-on reset mode that resets all registers to code 00 hex on power-up. The applications of the device include Digital Gain and Offset Adjustment, Programmable Attenuators, Portable Instruments and Power-Amp Bias Control.

Parametrics

MAX5102AEUE absolute maximum ratings: (1)VDD to GND: -0.3V to +6V; (2)D_, A0, WR, SHDN to GND: -0.3V to +6V; (3)REF to GND: -0.3V to (VDD + 0.3V); (4)OUT_ to GND: -0.3V to VDD; (5)Maximum Current into Any Pin: ±50mA; (6)Continuous Power Dissipation (TA = +70℃), 16-Pin TSSOP (derate 5.7mW/°C above +70℃): 457mW; (7)Operating Temperature Range: -40 to +85°C; (8)Maximum Junction Temperature: +150℃; (9)Storage Temperature Range: -65 to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX5102AEUE features: (1)+2.7V to +5.5V Single-Supply Operation; (2)Ultra-Low Supply Current: 0.2mA while Operating; 1nA in Shutdown Mode; (3)Ultra-Small 16-Pin TSSOP Package; (4)Ground to VDD Reference Input Range; (5)Output Buffer Amplifiers Swing Rail-to-Rail; (6)Power-On Reset Sets All Registers to Zero.
