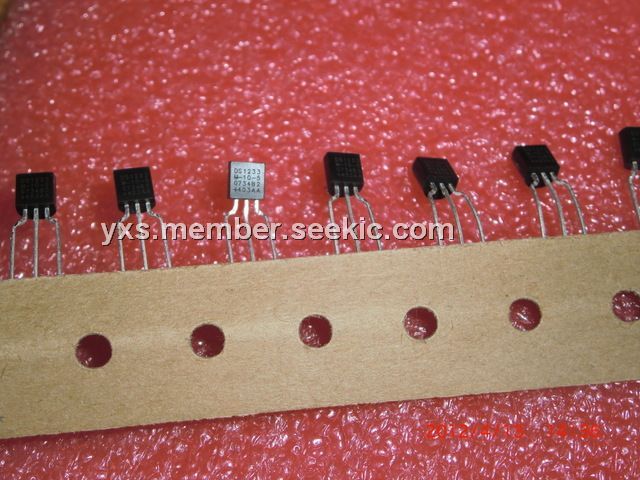

DS1233M-5

DS1233M-5, voltage monitor, 5.5 V, 8mA, TO-92-3

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.60~3.50

PartNumber:: DS1233M-5

Brand:: Maxim Integrated Products - Maxim | Pack: TO | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-26

From Other Seller

Part Number:DS1233M-5
US $1.60 - 3.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

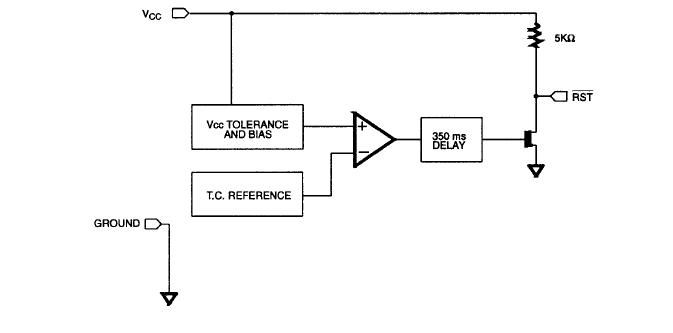

The DS1233M-5 is a voltage monitor. The DS1233M-5 uses a precision temperature-compensated reference and comparator circuit to monitor the status of the power supply (VCC). When an out-of-tolerance condition is detected, an internal power-fail signal is generated which forces reset to the active (low) state. When VCC returns to an intolerance condition, the reset signal is kept in the active state for approximately 350 ms to allow the power supply and processor to stabilize.

Parametrics

DS1233M-5 absolute maximum ratings: (1)Voltage on VCC Pin Relative to Ground -0.5V to +7.0V; (2)Voltage on I/O Relative to Ground -0.5V to VCC + 0.5V; (3)Operating Temperature -40℃ to +85℃; (4)Storage Temperature -55℃ to +125℃; (5)Soldering Temperature 260℃ for 10 seconds.

Features

DS1233M-5 features: (1)Automatically restarts microprocessor after power failure; (2)Maintains reset for 350 ms after VCC returns to an in-tolerance condition; (3)Reduces need for discrete components; (4)Precision temperature-compensated voltage reference and voltage sensor; (5)Low-cost TO-92 package or surface mount 8-pin SOIC packages available; (6)Internal 5 kΩ pullup resistor; (7)Compatible with Motorola 68XXX series and HC16 Microprocessors; (8)Pin function compatible with the Motorola MC33064, MC34064, MC33164, and MC34164; (9)Operating temperature of -40℃ to +85℃.
