Product Summary

The TSC87251G2D-24IB is a Microcontroller based on the 8/16-bit C251 Architecture. The TSC87251G2D-24IB is tailored to 8/16-bit microcontroller applications requiring an increased instruction throughput, a reduced operating frequency or a larger addressable memory space. The architecture of the TSC87251G2D-24IB can provide a significant code size reduction when compiling C programs while fully preserving the legacy of C51 assembly routines.

Parametrics

TSC87251G2D-24IB absolute maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)Voltage on any other Pin to VSS: -0.5 to +6.5 V; (3)IOL per I/O Pin: 15 mA; (4)Power Dissipation: 1.5 W; (5)Ambient Temperature Under Bias Commercial: 0 to +70℃; (6)Industrial: -40 to +85℃; (7)High Speed versions: 4.5 to 5.5 V; (8)Low Voltage versions: 2.7 to 5.5 V.

Features

TSC87251G2D-24IB features: (1)Pin and Software Compatibility with Standard 80C51 Products; (2)C251 Core: D-step Compliance; (3)40-byte Register File; (4)Registers Accessible as Bytes, Words or Dwords; (5)Three-stage Instruction Pipeline; (6)16-bit Internal Code Fetch; (7)Enriched C51 Instruction Set; (8)16-bit and 32-bit ALU; (9)Compare and Conditional Jump Instructions; (10)Expanded Set of Move Instructions; (11)Linear Addressing; (12)1 Kbyte of On-Chip RAM.

Diagrams

TSC87251G2D-24IB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

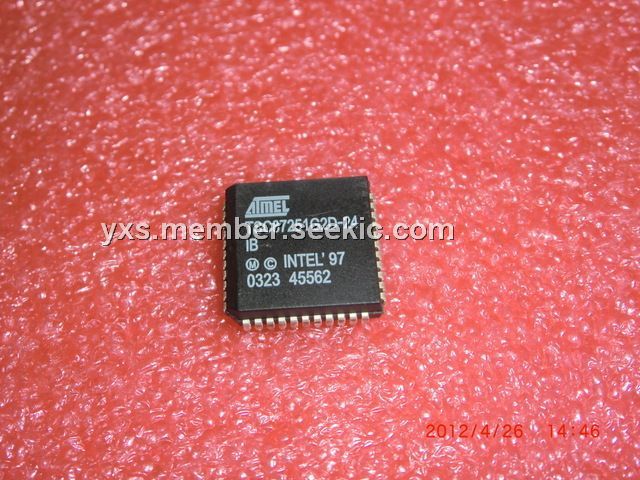

TSC87251G2D-24IB
TSC87251G2D-24IB


IC MCU 8BIT 32K OTP 24MHZ 44PLCC

Data Sheet

Negotiable
TSC87251G2D-24IBR
TSC87251G2D-24IBR


IC MCU 8BIT 32K OTP 24MHZ 44PLCC

Data Sheet

Negotiable
