Product Summary
The BA5962FVM-TR is a 1ch BTL power driver IC for CD / DVD. MSOP8 package enables the smallest configuration. This IC enables reduction of external parts, built-in level shift circuit. The BA5962FVM-TR is suitable for CD player.
Parametrics
BA5962FVM-TR absolute maximum ratings: (1)Power supply voltage, VCC: 18V; (2)Power dissipation, Pd: 0.55W; (3)Operating temperature, Topr: -35 to 85℃; (4)Storage temperature, Tstg: -55 to 150℃.
Features
BA5962FVM-TR features: (1)1ch BTL driver for CD / DVD; (2)MSOP8 package enables the smallest configuration; (3)Built in level shift circuit; (4)Built in thermal-shut-down circuit.

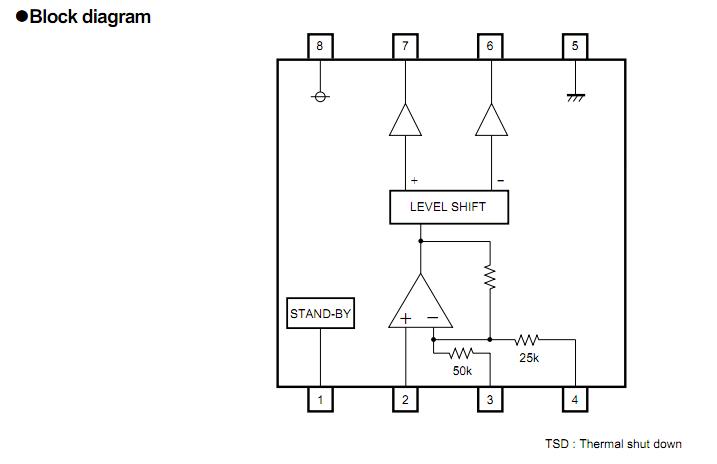

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

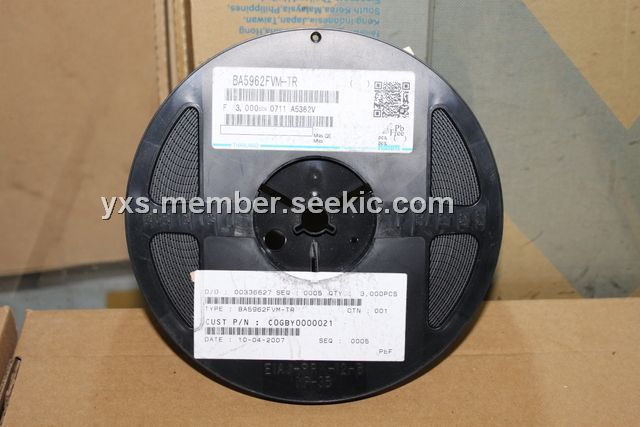

 BA5962FVM-TR |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers CD/CD-ROM/DVD DRIVER |
Data Sheet |
|
|
||||||
