Product Summary
The BSS138LT1G is a 200mA, 50V power MOSFET. Typical applications of BSS138LT1G are DC-DC converters, power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
Parametrics
BSS138LT1G absolute maximum ratings: (1)Drain-to-Source Voltage VDSS: 50 Vdc; (2)Gate-to-Source Voltage - Continuous VGS: ± 20 Vdc; (3)Drain Current-Continuous @ TA = 25℃ ID: 200mA; -Pulsed Drain Current (tp ≤ 10 μs) IDM: 800mA; (4)Total Power Dissipation @ TA = 25℃ PD: 225 mW; (5)Operating and Storage Temperature Range TJ, Tstg: -55 to 150 ℃; (6)Thermal Resistance-Junction-to-Ambient RθJA: 556 ℃/W; (7)Maximum Lead Temperature for Soldering Purposes, for 10 seconds; (8)TL: 260 ℃.
Features
BSS138LT1G features: (1)Pb-Free Packages are Available; (2)Low Threshold Voltage (VGS(th): 0.5 V-1.5 V) Makes it Ideal for Low Voltage Applications; (3)Miniature SOT-23 Surface Mount Package Saves Board Space.

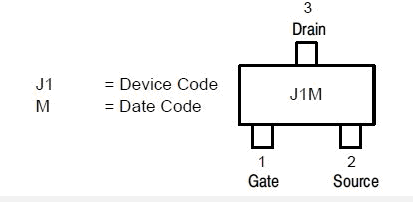

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BSS138LT1G |
ON Semiconductor |
MOSFET 50V 200mA N-Channel |
