Product Summary

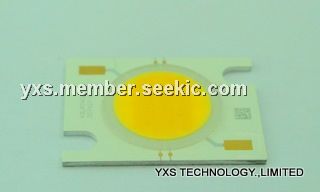

The CL-L230-C10L is a high power 10W pakage white LED.
Parametrics
CL-L230-C10L absolute maximum ratings: (1)Power Dissipation, Pd: 14.1W; (2)Forward Current, IF: 1.05A; (3)Forward Pulse Current, IFP: 1.5A; (4)Reverse Voltage, VR: 15V; (5)Operating Temperature, TOP: -30 to +85℃; (6)Storage Temperature, TST: -40 to +100℃; (7)Junction Temperature, Tj: Max 120℃.
Features
CL-L230-C10L features: (1)White power LED ; (2)for general lighting applications; (3)10 watt pakage; (4)White color rank L.

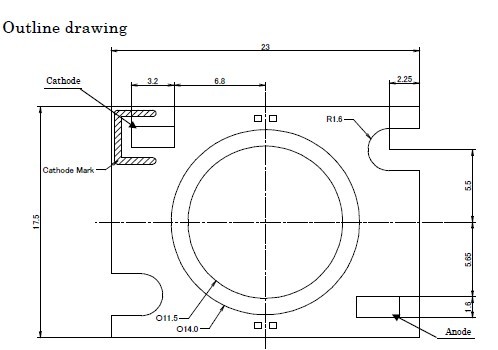

Diagrams
