Product Summary
The TPA3101D2PHPR is a 10-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. The TPA3101D2PHPR can drive stereo speakers as low as 4 Ω. The high efficiency of the TPA3101D2PHPR, 87%, eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36 dB. The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts with an auto recovery feature and monitor output. The TPA3101D2PHPR is suitable for televisions.
Parametrics
TPA3101D2PHPR absolute maximum ratings: (1)VCC, Supply voltage AVCC, PVCC: – 0.3 V to 30 V; (2)VI, Input voltage, SHUTDOWN, MUTE: – 0.3 V to VCC + 0.3 V; GAIN0, GAIN1, RINN, RINP, LINN, LINP, MSTR/ SLV,SYNC: – 0.3 V to VREG + 0.5 V; (3)TA, Operating free-air temperature range: – 40 to 85℃; (4)TJ, Operating junction temperature range: – 40 to 150℃; (5)Tstg, Storage temperature range: – 65 to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (7)R(Load), Load Resistance: 3.2Ω Minimum; (8)Electrostatic discharge, Human body model (all pins): ± 2 kV; Machine model (all pins): ± 200 V; Charged-device model (all pins): ± 500 V.
Features
TPA3101D2PHPR features: (1)10-W/ch into an 8- Ω Load From a 13-V Supply; (2)9.2-W/ch into an 8- Ω Load From a 12-V Supply; (3)Operates from 10 V to 26 V; (4)87% Efficient Class-D Operation Eliminates Need for Heat Sinks; (5)Four Selectable, Fixed Gain Settings; (6)Differential Inputs; (7)Thermal and Short-Circuit Protection With Auto Recovery Feature; (8)Clock Output for Synchronization With Multiple Class-D Devices; (9)Surface Mount 7 mm × 7 mm, 48-pin QFN Package; (10)Surface Mount 7 mm × 7 mm, 48-pin HTQFP Packa.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

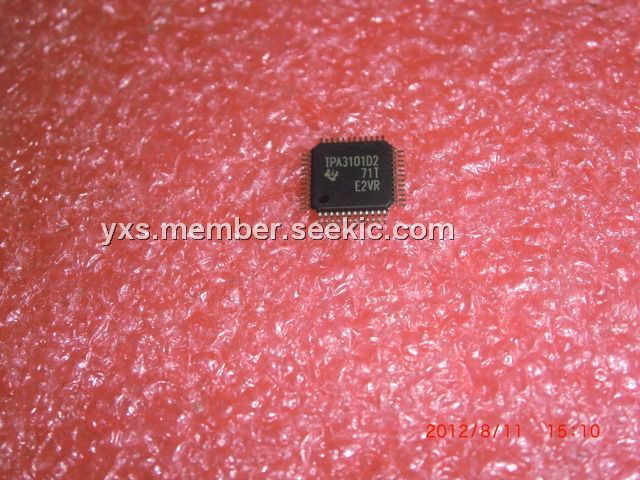

 TPA3101D2PHPR |
Texas Instruments |
Audio Amplifiers 10-W Stereo Class-D Aud Power Amplifier |
Data Sheet |
|
|
||||||||||||
|
TPA3101D2PHPRG4 |
Texas Instruments |
Audio Amplifiers 10-W Stereo Class-D Aud Power Amplifier |
Data Sheet |
|
|
||||||||||||
