Product Summary
The TC4804EPA is a BiCMOS optocoupled driver IC for switching loads when electrical isolation is desired. Input drive current of TC4804EPA is converted to low impedance voltage drive with the ability to drive 1.4 A peak current into a capacitive load of 1000 pF with fast output rise and fall times.
Parametrics
TC4804EPA absolute maximum ratings: (1)supply voltage: +20 V; (2)diode singnal current input: 20 mA; (3)maximum chip temperature: 85 ℃; (4)storage temperature range: -55 to +125 ℃; (5)lead temperature: +300 ℃; (6)power dissipation: 300 mW.
Features
TC4804EPA features: (1)isolated digital line drive; (2)isolated line receiver; (3)"high-side" driver; (4)SMPS control; (5)Motor control; (6)solid state relays; (7)off-line regulation/control.

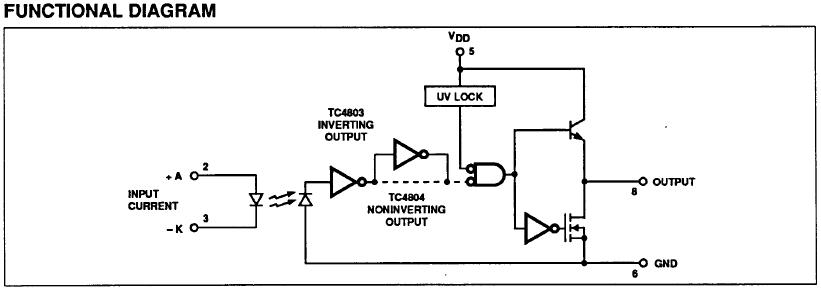

Diagrams
 |
