Product Summary
The TEA2025B is a monolithic integrated circuit in 12+2+2 Powerdip and 12+4+4 SO, intended for use as dual or bridge power audio amplifier portable radio cassette players.
Parametrics
TEA2025B absolute maximum ratings: (1)VS Supply Voltage: 15 V; (2)IO Ouput Peak Current: 1.5 A; (3)TJ Junction Temperature: 150 ℃; (4)Tstg Storage Temperature: 150 ℃.
Features
TEA2025B features: (1)dual or bridge connection modes; (2)few external components; (3)supplyvoltagedown to 3v; (4)highchannel separation; (5)very low switch on/off noise; (6)max gain of 45db with adjust external resistor; (7)soft clipping; (8)thermal protection; (9)3v < vcc < 15v.

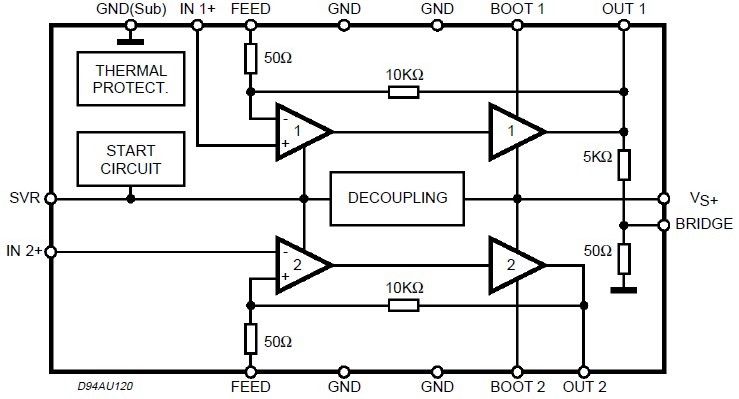

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TEA2025B |
STMicroelectronics |
Audio Amplifiers Stereo Audio Amp |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
TEA2025B |
STMicroelectronics |
Audio Amplifiers Stereo Audio Amp |
Data Sheet |
|
|
||||||||||||
 |
