Product Summary

The AD8052AR is a low cost, high speed, rail-to-rail amplifier.

Parametrics

AD8052AR absolute maximum ratings: (1)Input Voltage (Common Mode): ±VS; (2)Differential Input Voltage: ±2.5 V; (3)Output Short-Circuit Duration: Observe power derating curves; (4)Storage Temperature Range (R): -65℃ to +150℃; (5)Operating Temperature Range (A Grade): -40℃ to +125℃; (6)Lead Temperature (Soldering 10 sec): 300℃.

Features

AD8052AR features: (1)High speed and fast settling on 5 V; (2)Single-supply operation; (3)Video specifications (G = +2); (4)Low distortion; (5)Outstanding load drive capability; (6)Low power: 2.75 mA/amplifier.

Diagrams

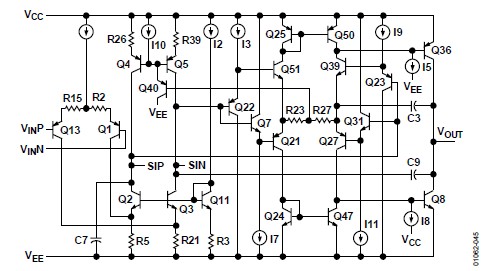

AD8052AR Simplified Schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8052AR
AD8052AR

IC OPAMP VF R-R DUAL LDIST 8SOIC
Data Sheet
0-98: $2.32
AD8052ARM-REEL
AD8052ARM-REEL

IC OPAMP VF R-R DUAL LDIST 8MSOP
Data Sheet
0-3000: $1.38
AD8052ARM-REEL7
AD8052ARM-REEL7

IC OPAMP VF R-R DUAL LDIST 8MSOP
Data Sheet
0-1000: $1.44
AD8052ARMZ
AD8052ARMZ

IC OPAMP VF R-R DUAL LDIST 8MSOP
Data Sheet
0-1: $2.50
1-10: $2.23
10-25: $2.00
25-100: $1.83
100-250: $1.65
250-500: $1.48
500-1000: $1.25
1000-2500: $1.19
AD8052ARZ-REEL7
AD8052ARZ-REEL7

IC OPAMP VF R-R DUAL LDIST 8SOIC
Data Sheet
0-750: $1.34
AD8052ARZ-REEL
AD8052ARZ-REEL

IC OPAMP VF R-R DUAL LDIST 8SOIC
Data Sheet
0-2500: $1.19
AD8052ARZ
AD8052ARZ

IC OPAMP VF R-R DUAL LDIST 8SOIC
Data Sheet
0-1: $2.50
1-10: $2.23
10-100: $1.83
100-250: $1.65
250-500: $1.48
500-1000: $1.25
1000-2500: $1.19
AD8052AR-REEL7
AD8052AR-REEL7

IC OPAMP VF R-R DUAL LDIST 8SOIC
Data Sheet
0-750: $1.55
