Product Summary
The PCK2002PDP is a 1- 4 fanout buffer used as a high-performance, low skew, general purpose and PCI-X clock buffer. It distributes one input clock (BUF_IN) signal to four output clocks (BUF_OUTn).
Parametrics
PCK2002PDP absolute maximum ratings: (1)VDD DC 3.3 V supply voltage: -0.5 +4.3 V; (2)IIK DC input diode current: -50 mA; (3)VI DC input voltage: -0.5 to VDD + 0.5 V; (4)IOK DC output diode current: ±50 mA; (5)VO DC output voltage: -0.5 to VDD + 0.5 V; (6)IO DC output source or sink current: ±50 mA; (7)Tstg Storage temperature range: -65 to +150℃; (8)Ptot Power dissipation: 0 to +70℃.
Features
PCK2002PDP features: (1)General purpose and PCI-X 1:4 clock buffer; (2)8-pin TSSOP package; (3)See PCK2001 for 48-pin 1:18 buffer part; (4)See PCK2001M for 28-pin 1:10 buffer part; (5)See PCK2001R for 16-pin 1:6 buffer part; (6)Operating frequency: 0 - 533 MHz; (7)Part-to-part skew < 500 ps; (8)Low output skew: <200 ps; (9)3.3 V operation; (10)ESD classification testing is done to JEDEC Standard JESD22. Protection exceeds 2000 V to HBM per method A114.

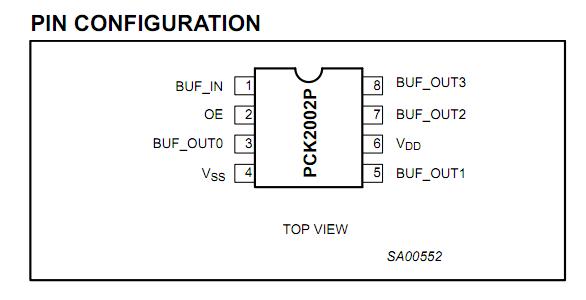

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCK2002PDP,118 |
NXP Semiconductors |
Clock Buffer 14.318-167MHZ I2C |
Data Sheet |
Negotiable |
|
||||
 |
PCK2002PDP-T |
NXP Semiconductors |
Clock Buffer 14.318-167MHZ I2C 1:4 CLK BUFR |
Data Sheet |
Negotiable |
|
||||
