MT48LC16M4A2TG-75

MT48LC16M4A2TG-75, high-speed, CMOS, dynamic random-access memory, TSSOP, -1V to 4.6V, 1W, Micron Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.80~3.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	3.80 / Piece
51 ~ 200 :	3.00 / Piece
201 ~ 500 :	2.80 / Piece

PartNumber:: MT48LC16M4A2TG-75

Brand:: Micron Technology - MT | Pack: TSSOP | D/C:

Availability:: Supply Ability: 7000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-03

From Other Seller

Part Number:MT48LC16M4A2TG-75
US $2.80 - 3.80
Quantity:

piece

Product Summary

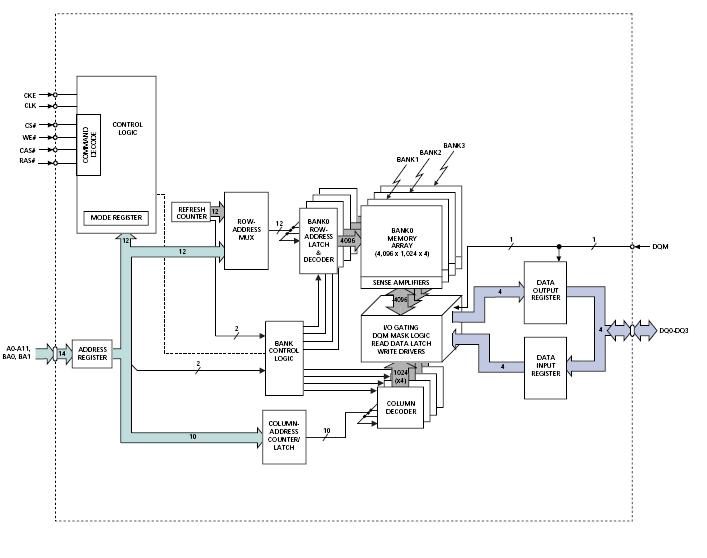

The MT48LC16M4A2TG-75 is a high-speed CMOS, dynamic random-access memory containing 67,108,864 bits. The MT48LC16M4A2TG-75 is internally configured as a quadbank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the x4’s 16,777,216-bit banks is organized as 4,096 rows by 1,024 columns by 4 bits. Each of the x8’s 16,777,216-bit banks is organized as 4,096 rows by 512 columns by 8 bits. Each of the x16’s 16,777,216-bit banks is organized as 4,096 rows by 256 columns by 16 bits.

Parametrics

MT48LC16M4A2TG-75 absolute maximum ratings: (1)Voltage on VDD, VDDQ Supply Relative to VSS: -1V to +4.6V; (2)Voltage on Inputs, NC or I/O Pins Relative to VSS: -1V to +4.6V; (3)Operating Temperature, TA (commercial): 0℃ to +70℃; (4)Operating Temperature, TA (extended; IT parts): -40℃ to +85℃; (5)Storage Temperature (plastic): -55℃ to +150℃; (6)Power Dissipation: 1W.

Features

MT48LC16M4A2TG-75 features: (1)PC66-, PC100-, and PC133-compliant; (2)Fully synchronous; all signals registered on positive edge of system clock; (3)Internal pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto Precharge, includes concurrent auto precharge, and Auto Refresh Modes; (7)Self Refresh Modes: standard and low power; (8)64ms, 4,096-cycle refresh; (9)LVTTL-compatible inputs and outputs; (10)Single +3.3V ±0.3V power supply.
