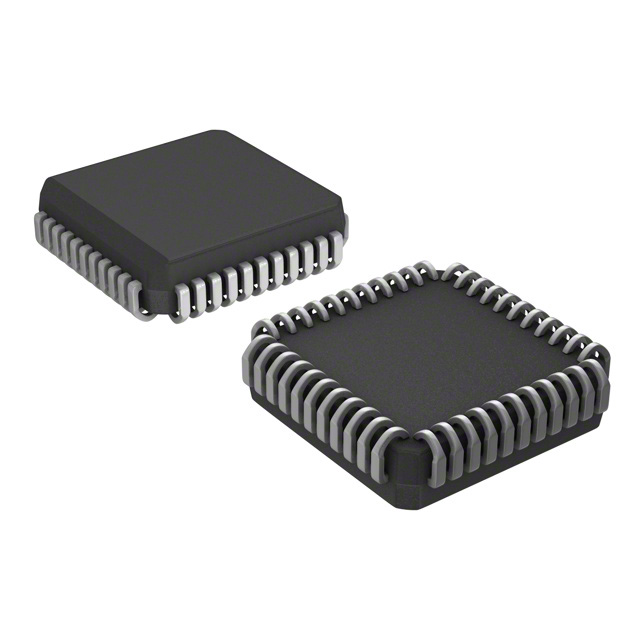

MC68HC705C9ACFNE

Microcontroller, 2.1MHZ, -0.3V to +7.0V, 44-PLCC, MC68HC705C9ACFNE, 5mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~60.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~60.00

PartNumber:: MC68HC705C9ACFNE

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MC68HC705C9ACFNE
US $5.00 - 60.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
P480A02

US $46.00 - 52.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

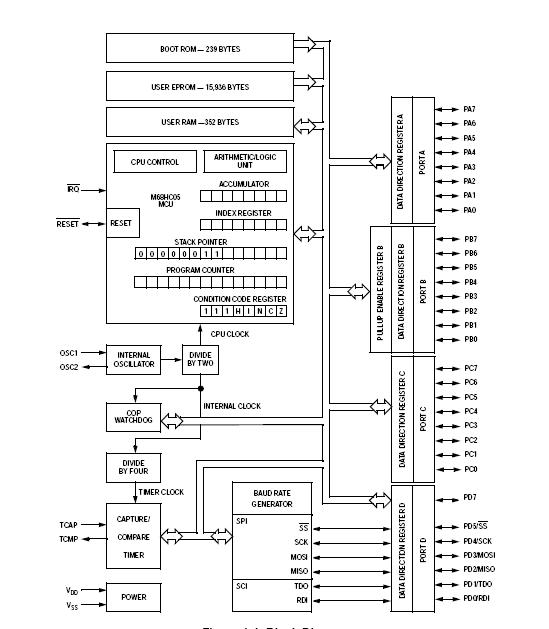

The MC68HC705C9ACFNE is a Microcontroller. The MC68HC705C9ACFNE memory map consists of 12,092 bytes of user EPROM and 176 bytes of RAM when it is configured as an MC68HC705C9ACFNE and 15,932 bytes of user EPROM and 352 bytes of RAM when configured as an MC68HC705C9ACFNE. The MC68HC705C9ACFNE includes a serial communications interface, a serial peripheral interface, and a 16-bit capture/compare timer.

Parametrics

MC68HC705C9ACFNE absolute maximum ratings: (1)Supply voltage: -0.3 to +7.0V; (2)Input voltage-Normal operation: –0.3 to VDD + 0.3; (3)Input voltage-Bootloader mode (IRQ pin only): VSS–0.3 to 2 x VDD+0.3V; (4)Current drain per pin: 5mA; (5)Storage temperature range: –65 to +150℃

Features

MC68HC705C9ACFNE features: (1)Programmable mask option register (MOR) for C9A/C12A configuration; (2)MOR for port B pull-ups and interrupts; (3)Popular M68HC05 central processor unit (CPU); (4)15,932 bytes of EPROM (12,092 bytes for C12A configuration); (5)352 bytes of RAM (176 for C12A configuration); (6)Memory mapped input/output (I/O); (7)31 bidirectional I/O lines (24 I/O + 6 input only for C12A configuration) with high current sink and source on PC7; (8)Asynchronous serial communications interface (SCI); (9)Synchronous serial peripheral interface (SPI); (10)16-bit capture/compare timer; (11)Computer operating properly (COP) watchdog timer and clock monitor Power-saving wait and stop modes; (12)On-chip crystal oscillator connections; (13)Single 3.0 volts to 5.5 volts power supply requirement.
