Product Summary

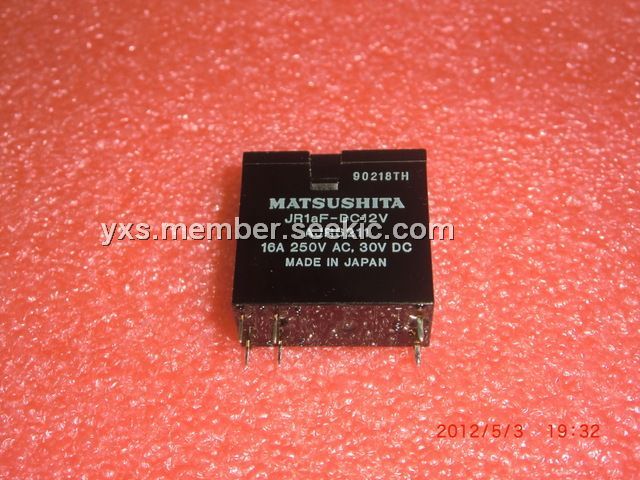

The JR1aF-DC12V is a slim type power relay. The applications of the device include Microwave ovens, Refrigerators, Copiers, Facsimiles, Air conditioners, Stereo equipment, TV sets, Vending machines and Temperature controllers.
Parametrics
JR1aF-DC12V absolute maximum ratings: (1)Arrangement: 1 Form A; (2)Initial contact resistance max: 30 mΩ; (3)Contact material: Silver alloy; (4)Nominal switching capacity: 10 A 250 V AC; (5)Maximum switching power: 2,500 VA, 300 W; (6)Maximum switching voltage: 250 V AC, 30 V DC; (7)Maximum switching current: 10 A.
Features
JR1aF-DC12V features: (1)AC coil types and high capacity (16 A) types; (2)Wide insulation distance: 8 mm .315 inch between coil and contact; (3)High dielectric withstanding for transient protection: JR can withstand 10,000 V surge in μs between coil and contact.; (4)High inrush current capability: 1 Form A: 111 A inrush (TV-5); (5)Slim package for tandem mounting: Header area is 28.6 mm × 12.8 mm 1.126×.504 inch; (6)Molded materials: all 94 V-0; (7)TM and TMP types available; (8)TüV also approved.
