M51995AFP

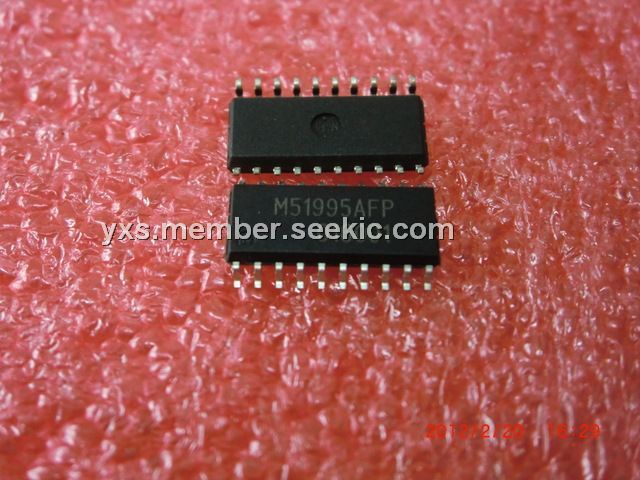

primary switching regulator controller, SOP-20, 36 V, 5 mA, M51995AFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.32~4.23 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.32~4.23

PartNumber:: M51995AFP

Brand:: Renesas Technology Corp - Renesas | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-22

From Other Seller

Part Number:M51995AFP
US $2.32 - 4.23
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

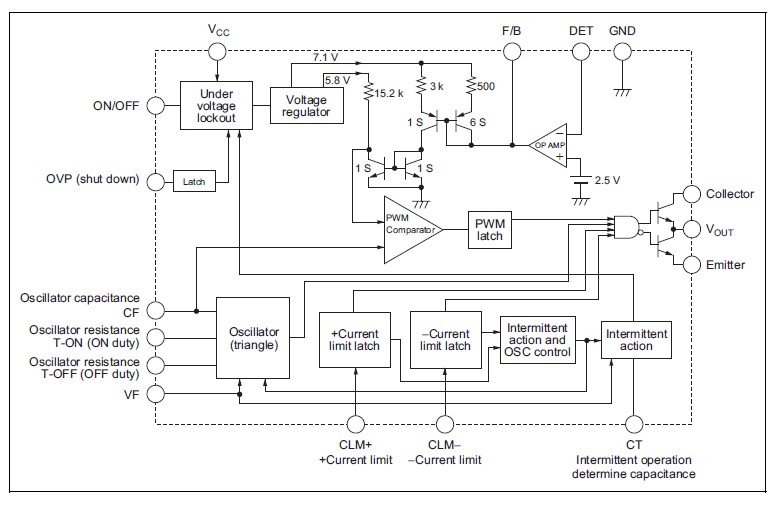

The M51995AFP is a primary switching regulator controller which is especially designed to get the regulated DC voltage from AC power supply. This IC can directly drive the MOS-FET with fast rise and fast fall output pulse. The M51995AFP has the functions of not only high frequency OSC and fast output drive but also current limit with fast response and high sensibility so the true "fast switching regulator" can be realized. The M51995AFP is widely used in feed forward regulator, fly-back regulator.

Parametrics

M51995AFP absolute maximum ratings: (1)Supply voltage VCC: 36 V; (2)Collector voltage VC: 36 V; (3)Output current IO: ±2/±0.15 A; (4)VF terminal voltage VVF: VCC V; (5)ON/OFF terminal voltage VON/OFF: VCC V; (6)CLM.terminal voltage VCLM-: -4.0 to +4.0 V; (7)CLM+terminal voltage VCLM+: -0.3 to +4.0 V; (8)OVP terminal current IOVP: 8 mA; (9)DET terminal voltage VDET: 6 V; (10)DET terminal input current IDET: 5 mA; (11)F/B terminal voltage VFB: 0 to 10 V; (12)T-ON terminal input current ITON: -1 mA; (13)T-OFF terminal input current ITOFF: -2 mA; (14)Power dissipation Pd: 1.5 W; (15)Thermal derating factor Kθ: 12 mW/℃; (16)Operating temperature Topr: -30 to +85 ℃; (17)Storage temperature Tstg: -40 to +125 ℃; (18)Junction temperature Tj: 150 ℃.

Features

M51995AFP features: (1)500 kHz operation to MOS FET: Output current : ±2 A; Output rise time 60 ns, fall time 40 ns; Modified totempole output method with small through current; (2)Compact and light-weight power supply; (3)Simplified peripheral circuit with protection circuit and built-in large-capacity totempole output; (4)High-performance and highly functional power supply: Triangular wave oscillator for easy dead time setting.
