Product Summary

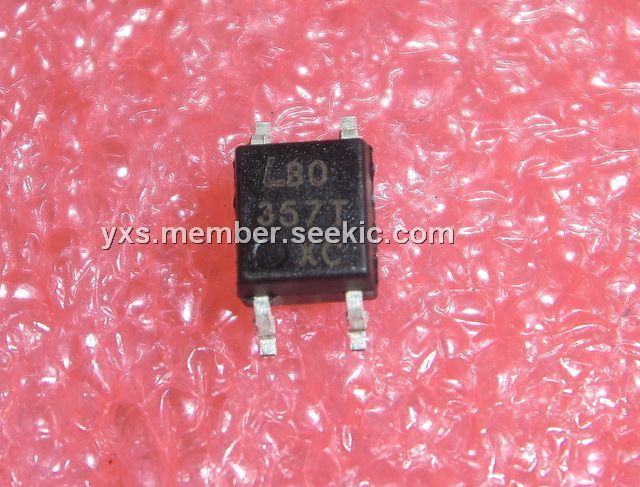

The LTV-357T is an opto-isolator in SMD package. It is widely used in hybrid substrates that require high density mounting and programmable controllers.
Parametrics
LTV-357T absolute maximum ratings: (1)Forward Current, IF: 50mA; (2)Reverse Voltage, VR: 6V; (3)Power Dissipation, Pd: 70mW; (4)Collector Emitter Voltage, VCEO: 80V; (5)Emitter Collector Voltage, VECO: 6V; (6)Collector Current, IC: 50mA; (7)Collector Power Dissipation, PC: 150mW; (8)Total Power Dissipation, Ptot: 170mW; (9)Isolation Voltage, Viso: 3,750Vrms; (10)Operating Temperature, Topr: -55 to +100℃; (11)Storage Temperature, Tstg: -55 to +150℃; (12)Soldering Temperature, Tsol: 260℃.
Features
LTV-357T features: (1)Current transfer ratio; (2)High input-output isolation voltage; (3)High collector-emitter voltage; (4)Employs double transfer mold technology; (5)Subminiature type; (6)Mini-flat package : 2.0mm profile : LTV-357T.

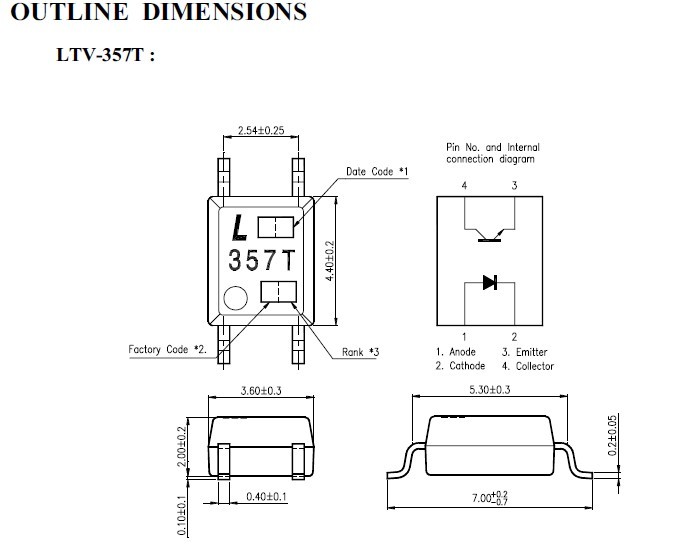

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTV-357T |
Lite-On |
Transistor Output Optocouplers Optocoupler Phototrans |
Data Sheet |
|
|
||||||||||||
