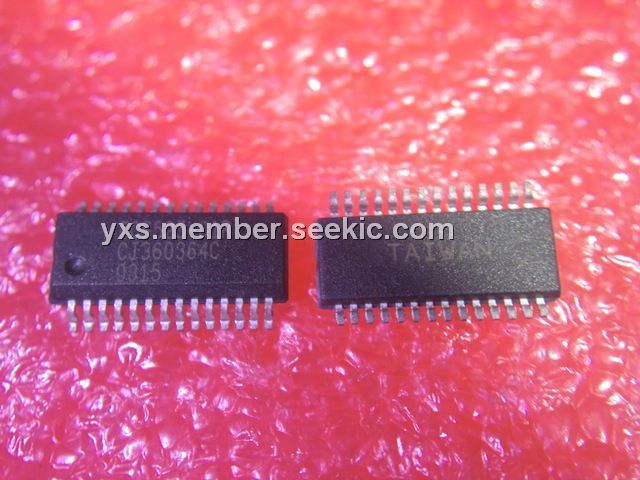

ICS525-01R

OSCaR User Configurable Clock, SSOP, 7 V, ICS525-01R, Integrated Circuit Systems

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.20~4.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.20~4.80

PartNumber:: ICS525-01R

Brand:: Integrated Circuit Systems - ICS | Pack: SSOP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-20

From Other Seller

Part Number:ICS525-01R
US $3.20 - 4.80
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

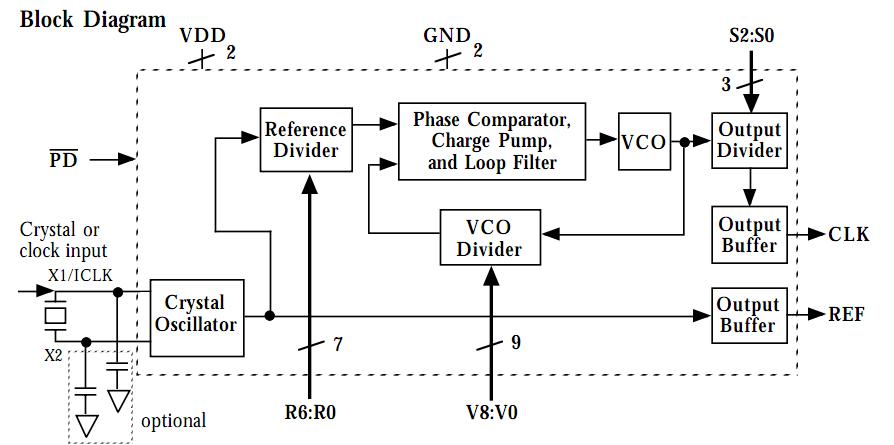

The ICS525-01R is an OSCaR User Configurable Clock. It is a high quality, high accuracy, high frequency clock output from an inexpensive crystal or clock input. The name OSCaR stands for OSCillator Replacement, as the ICS525-01R is designed to replace crystal oscillators in almost any electronic system. The user can easily configure the device to produce nearly any output frequency from any input frequency by grounding or floating the select pins.

Parametrics

ICS525-01R absolute maximum ratings: (1)Supply Voltage, VDD: 7 V; (2)Inputs: -0.5 VDD+0.5 V; (3)Clock OutputD: -0.5 to VDD+0.5 V; (4)Ambient Operating Temperature: 0 to 70℃; (5)Industrial -40 to 85℃; (6)Soldering Temperature Max of 10 seconds: 260℃; (7)Storage Temperature: -65 to 150℃.

Features

ICS525-01R features: (1)Packaged as 28 pin SSOP (150 mil body; (2) User determines the output frequency by setting all internal dividers; (3)Eliminates need for custom oscillators; (4)No software needed; (5)Pull-ups on all select inputs; (6)Input crystal frequency of 5 - 27 MHz; (7) Input clock frequency of 2 - 50 MHz; (8)Very low jitter ; (9)Duty cycle of 45/55 up to 200 MHz; (10)Operating voltages of 3.0 to 5.5V; (11)Ideal for oscillator replacement; (12)Industrial temperature versions available; (13)For Zero Delay, refer to the ICS527.
