Product Summary

The HRS2H-S-DC12V is a PCB Relay.

Parametrics

HRS2H-S-DC12V absolute maximum ratings: (1)Minimum Insulation Resistance: 100MΩ, at 500V dc; (2)Dielectric Strength: 1000V ac, 1 minute between open contact 1500V ac, 1 minute between contact and coil; (3)Surge Strength: 2000V ac (20Ω); (4)Maximum Operate Time: 6ms; (5)Maximum Release Time: 4ms; (6)Temperature Range: -30 to +60℃; (7)Shock Resistance: 15G; (8)Vibration Resistance: 10 - 55Hz, Amplitude 1.5mm.

Features

HRS2H-S-DC12V features: (1)Low profile; (2)Fully sealed; (3)Standard and sensitive coil versions; (4)DPCO contacts.

Diagrams

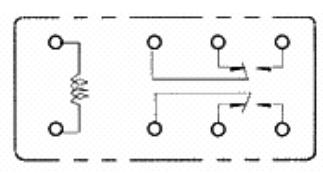

HRS2H-S-DC12V block diagram
