Product Summary

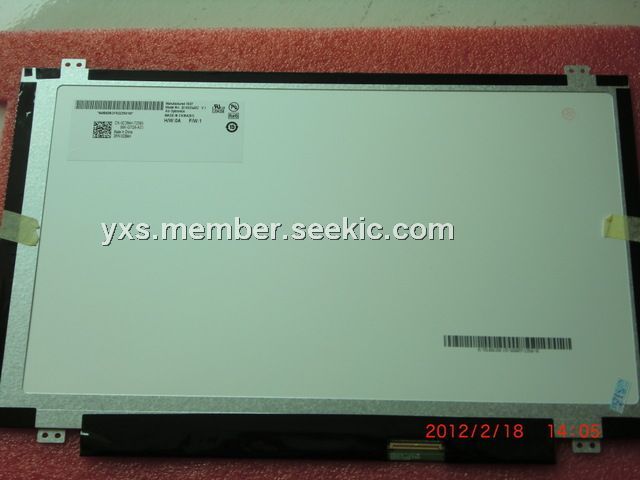

The B140XW02 V.1 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the HD (1366(H) x 768(V)) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible. The B140XW02 V.1 is designed for a display unit of notebook style personal computer and industrial machine.

Parametrics

B140XW02 V.1 absolute maximum ratings: (1)Logic/LCD Drive, Vin: -0.3 to to +4.0 [Volt]; (2)LED Driving Voltage, VLED: 36 (Row Output) [Volt]; (3)LED Driving Current, ILED: 30 (Row Output) [mA] rms; (4)Operating Temperature, TOP: 0 to +50 ℃; (5)Operation Humidity, HOP: 8 to 95 [%RH]; (6)Storage Temperature, TST: -20 to +65℃; (7)Storage Humidity, HST: 5 to 95 [%RH].

Features

B140XW02 V.1 features: (1)Screen Diagonal [mm]: 14.0"; (2)Active Area [mm]: 309.399×173.952; (3)Pixels H × V: 1366×3(RGB) × 768; (4)Pixel Pitch [mm]: 0.2265; (5)Pixel Format: B.G.R. Vertical Stripe; (6)Display Mode: Normally White; (7)White Luminance (ILED=20mA) [cd/m2]: 200 typ. (5 points average) ; (8)170 min. (5 points average) ; (9)Luminance Uniformity: 1.25 max. (5 points); (10)Contrast Ratio: 500 typ; (11)Response Time [ms]: 8 typ; (12)Nominal Input Voltage VDD: [Volt] +3.3 typ; (13)Power Consumption [Watt]: 4.5 max; (14)Weight [Grams]: 320 max.

Diagrams

B140XW02 V.1 block diagram
