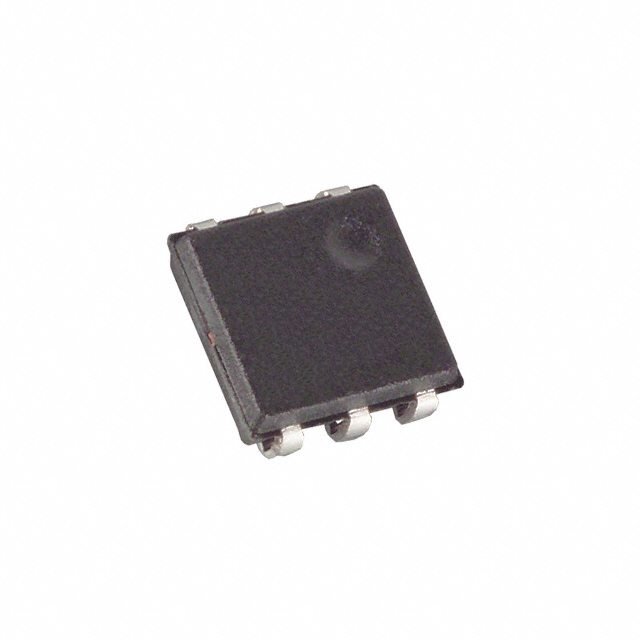

DS2431P+T

6 TSOC, 1024-Bit, 1-Wire EEPROM, DS2431P+T, -0.5V to +6V, 20mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.72~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.72~1.30

PartNumber:: DS2431P+T

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-24

From Other Seller

Part Number:DS2431P+T
US $0.72 - 1.30
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

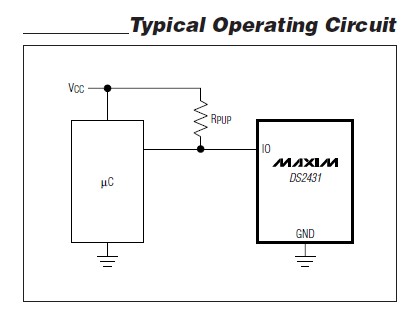

The DS2431P+T is a 1024-bit, 1-Wire EEPROM chip organized as four memory pages of 256 bits each. Data is written to an 8-byte scratchpad, verified, and then copied to the EEPROM memory. As a special feature, the four memory pages can individually be write protected or put in EPROM-emulation mode, where bits can only be changed from a 1 to a 0 state. The DS2431P+T communicates over the single-conductor 1-Wire bus. The communication follows the standard 1-Wire protocol. Each device has its own unalterable and unique 64-bit ROM registration number that is factory lasered into the chip. The registration number is used to address the device in a multidrop, 1-Wire net environment.

Parametrics

DS2431P+T absolute maximum ratings: (1)IO Voltage Range to GND: -0.5V to +6V; (2)IO Sink Current: 20mA; (3)Operating Temperature Range: -40℃ to +85℃; (4)Junction Temperature: +150℃; (5)Storage Temperature Range: -55℃ to +125℃; (6)Soldering Temperature: Refer to the IPC/JEDEC J-STD-020 Specification.

Features

DS2431P+T features: (1)1024 Bits of EEPROM Memory Partitioned Into Four Pages of 256 Bits; (2)Individual Memory Pages Can Be Permanently Write Protected or Put in EPROM-Emulation Mode("Write to 0"); (3)Switchpoint Hysteresis and Filtering to Optimize Performance in the Presence of Noise; (4)IEC 1000-4-2 Level 4 ESD Protection (±8kV Contact, ±15kV Air, Typical); (5)Reads and Writes Over a Wide Voltage Range from 2.8V to 5.25V from -40℃ to +85℃; (6)Communicates to Host with a Single Digital Signal at 15.4kbps or 125kbps Using 1-Wire Protocol; (7)Also Available as Automotive Version Meeting AEC-Q100 Grade 1 Qualification Requirements(DS2431-A1).
