Product Summary

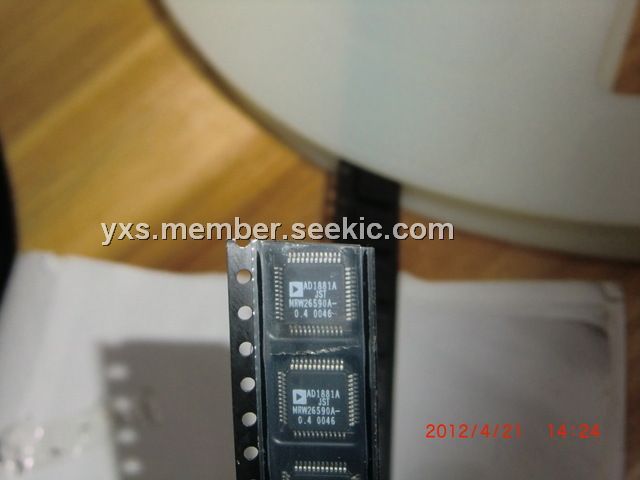

The AD1881AJST is an AC’97 SoundMAX Codec.
Parametrics
AD1881AJST aboslute maximum ratings: (1)Power Supplies: Digital (VDD): –0.3 to +3.6 V, Analog (VCC): –0.3 to +6.0 V; (2)Analog Input Voltage (Signal Pins): –0.3 to VCC + 0.3 V; (3)Digital Input Voltage (Signal Pins): –0.3 to VDD + 0.3 V; (4)Ambient Temperature (Operating): 0 to +70 ℃; (5)Storage Temperature: –65 to +150 ℃.
Features
AD1881AJST features: (1)Designed for AC97 Analog I/O Component; (2)48-Lead LQFP Package; (3)16-Bit Stereo Full-Duplex Codec Four Analog Line-Level Stereo Inputs for Connection from LINE, CD, VIDEO, and AUX; (4)Two Analog Line-Level Mono Inputs for Speakerphone and PC BEEP; (5)Mono MIC Input Switchable from Two External Sources; (6)High Quality CD Input with Ground Sense; (7)Stereo Line-Level Output; (8)Mono Output for Speakerphone or Internal Speaker; (9)Power Management Support.

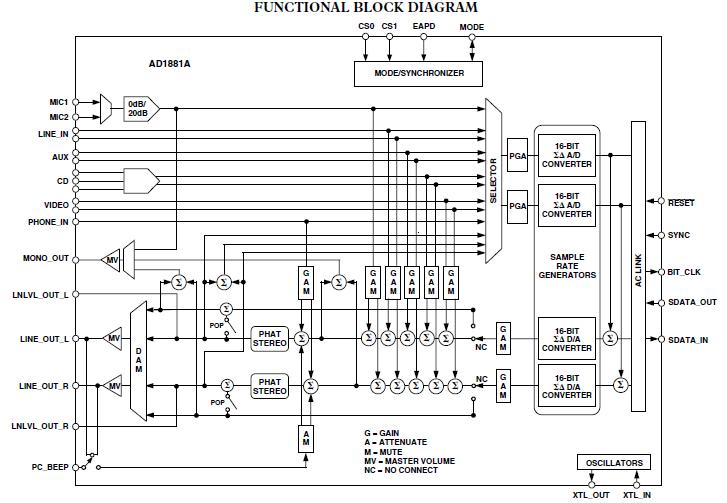

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD1881AJST |
Analog Devices Inc |
IC AUDIO CODEC AC'97 48-LQFP |
Data Sheet |
Negotiable |
|
||||||||||||
|
AD1881AJST-REEL |
Analog Devices Inc |
IC CODEC STEREO 16BIT 48LQFP TR |
Data Sheet |
Negotiable |
|
||||||||||||
|
AD1881AJSTZ |
Analog Devices Inc |
IC AUDIO CODEC AC'97 48-LQFP |
Data Sheet |
|
|
||||||||||||
|
AD1881AJSTZ-REEL |
Analog Devices Inc |
IC CODEC STEREO 16BIT 48LQFP |
Data Sheet |
|
|
||||||||||||
