Product Summary

The AD537JH is a monolithic V-F converter consisting of an input amplifier, a precision oscillator system, an accurate internaleference generator and a high current output stage. Only a single external RC network is required by AD537JH to set up any full-scale (F.S.) frequency up to 100 kHz and any F.S. input voltage up to ± 30 V.

Parametrics

AD537JH absolute maximum ratings: (1)Frequency Range 0 kHz to 150 kHz; (2)Nonlinearity, fMAX = 10 kHz: 0.15% max (0.1% typ); (3)fMAX = 100 kHz: 0.25% max (0.15% typ); (4)Full-Scale Calibration Error; (5)C = 0.01 μF, IIN = 1.000 mA ± 10% max; (6)vs. Supply (fMAX < 100 kHz): ± 0.1%/V max (0.01% typ); (7)vs. Temp (TMIN to TMAX): ± 150 ppm/℃ max (50 ppm typ).

Features

AD537JH features: (1)Low Cost A–D Conversion; (2)Versatile Input Amplifier; (3)Positive or Negative Voltage Modes; (4)Negative Current Mode; (5)High Input Impedance, Low Drift; (6)Single Supply, 5 V to 36 V; (7)Linearity: 0.05% FS; (8)Low Power: 1.2 mA Quiescent Current; (9)Full-Scale Frequency up to 100 kHz; (10)1.00 V Reference; (11)Thermometer Output (1 mV/K).

Diagrams

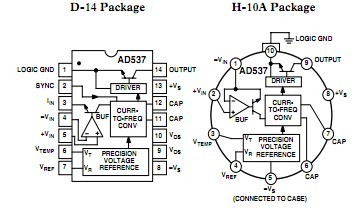

AD537JH block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

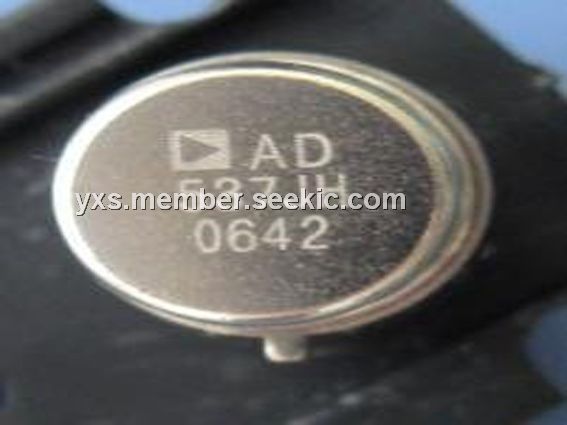

AD537JH
AD537JH

IC V/F CONV TO-100-10
Data Sheet
0-1: $10.95
1-10: $10.13
10-100: $8.65
100-250: $7.94
250-500: $7.56
500-1000: $7.30
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD5300
AD5300
Other

Data Sheet
Negotiable
AD5300*
AD5300*
Other

Data Sheet
Negotiable
AD5300BRM
AD5300BRM

IC DAC 8BIT R-R 2.7-5.5V 8-MSOP
Data Sheet
0-150: $1.70
AD5300BRM-REEL
AD5300BRM-REEL
Analog Devices Inc.
IC DAC 8BIT R-R 2.7-5.5V 8-MSOP
Data Sheet
Negotiable
AD5300BRM-REEL7
AD5300BRM-REEL7
Analog Devices Inc
IC DAC 8BIT R-R 2.7-5.5V 8-MSOP
Data Sheet
1-1000: $1.29
AD5300BRMZ
AD5300BRMZ

IC DAC 8BIT R-R 2.7-5.5V 8-MSOP
Data Sheet
0-1: $2.03
1-10: $1.81
10-25: $1.63
25-100: $1.48
100-250: $1.34
250-500: $1.20
500-1000: $1.01
1000-2500: $0.96
