Product Summary

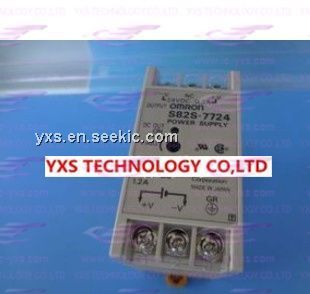

The S82S-7724 is a switch mode power supply.

Parametrics

S82S-7724 absolute maximum ratings: (1)Efficiency (typical): 60% to 73% (Varies with specifications.); (2)Temperature variation influence: 0.05%/°C max.; (3)Overload protection : 105% min. of rated load current, voltage drop, automatic reset; (4)Storage temperature -25 to 65°C; (5)Ambient operating humidity 25% to 85% (storage humidity: 20% to 90%); (6)Insulation resistance 100 MΩ min. at 500 VDC (between all outputs and inputs/PE terminal); (7)Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 hours each in X, Y, and Z directions.

Features

S82S-7724 features: (1)65 mm depth enables mounting onto control panels with 100 mm depth; (2)Inputs: 10.2 to 27.6 VDC (DC input); (3)7.5-W models provide both +/-2-V and +/-5-V outputs; (4)A complete lineup with 10 different models; (5)UL and CSA approved; (6)RoHS-compliant.

Diagrams

S82S-7724 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S82S-7724
S82S-7724
Omron Industrial
DIN Rail Power Supplies 24V 0.3A OUTPUT DC12-24 INPUT
Data Sheet
0-1: $76.78
1-5: $69.80
5-10: $63.98
10-25: $59.07
