Product Summary

The E3Z-R61 is a compact photoelectric sensor with built-in amplifier.

Parametrics

E3Z-R61 absolute maximum ratings: (1)Current consumption: 35 mA; (2)Ambient temperature range Operating: -25 to 55°C; (3)Insulation resistance: 20 MΩ min. at 500 VDC; (4)Dielectric strength: 1,000 VAC, 50/60 Hz for 1 min.

Features

E3Z-R61 features: (1)Long sensing distance of 30 m for Through-beam Models, 4 m for Retro-reflective Models, and 1 m for Diffuse-reflective Models; (2)Mechanical axis and optical axis offset of less than ±2.5° simplifies optical axis adjustment; (3)High stability with unique algorithm that prevents interference of external light.

Diagrams

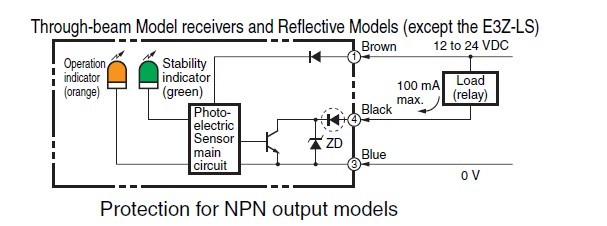

E3Z-R61 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E3Z-R61
E3Z-R61

Omron Industrial

Photoelectric Sensors NPN POLAR RETROREFL

Data Sheet

0-1: $54.24
1-5: $52.61
5-10: $51.03
10-25: $50.22
E3Z-R61 0.5M
E3Z-R61 0.5M

Omron Industrial

Photoelectric Sensors Retro Polar NPN Cabl e .5M

Data Sheet

0-1: $64.12
1-5: $59.90
5-10: $58.00
10-20: $56.95
E3Z-R61 5M
E3Z-R61 5M

Omron Industrial

Photoelectric Sensors RETRO POLAR NPN CABL E 5M

Data Sheet

0-1: $74.17
1-5: $69.29
5-10: $67.09
10-20: $65.87
E3Z-R61-G0SRW-CN
E3Z-R61-G0SRW-CN


SENSOR PHOTOELECTRIC 4M M8 CONN

Data Sheet

0-1: $85.24
E3Z-R61-G0SRW-M1
E3Z-R61-G0SRW-M1


SENSOR PHOTOELECTRIC 4M M12 CONN

Data Sheet

0-1: $88.31
E3Z-R61-G0SRW-P2
E3Z-R61-G0SRW-P2


SENSOR PHOTOELECTRIC 4M

Data Sheet

0-1: $76.79
E3Z-R61K 2M
E3Z-R61K 2M

Omron Industrial

Photoelectric Sensors Retro NPN Coated 2M Cable

Data Sheet

0-1: $90.05
1-10: $81.87
10-25: $75.04
25-50: $69.27
E3Z-R61H
E3Z-R61H

Omron Industrial

Photoelectric Sensors Low Cost Retro PES NPN

Data Sheet

0-1: $50.15
1-5: $46.85
5-10: $45.37
10-20: $44.54
