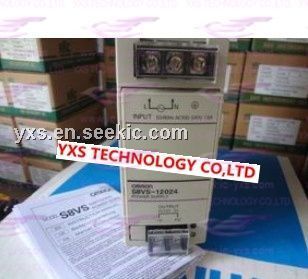

Product Summary

The S8VS-12024 is a switch mode power supply.

Parametrics

S8VS-12024 absolute maximum ratings: (1)Leakage current: 1.0 mA max.; (2)Inrush current: 35 A max., 28 A typical; (3)Ripple noise voltage (at rated I/O): 150 mV max.; (4)Storage temperature: -25 to 65°C.

Features

S8VS-12024 features: (1)New 90-W models with indication monitor that conform to UL Class 2 Output standards; (2)New models with screwless terminal blocks and indication monitor; (3)Status displayed on 3-digit, 7-segment display; (4)Input conditions: DC input is also possible from 80 to 370 VDC (Not compliant with EC Directives and other safety standards.).

Diagrams

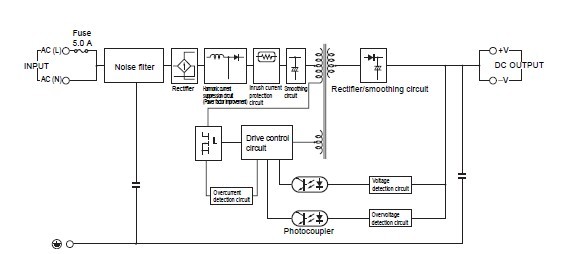

S8VS-12024 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S8VS-12024
S8VS-12024
Omron Industrial
DIN Rail Power Supplies 24V 5A Out 100-240VAC INPT
Data Sheet
0-1: $182.84
1-10: $161.86
10-25: $153.86
S8VS-12024A
S8VS-12024A
Omron Industrial
DIN Rail Power Supplies 24V5A Out Lifetime 100-240
Data Sheet
0-1: $129.47
1-10: $125.58
10-25: $117.87
25-50: $111.89
S8VS-12024AP
S8VS-12024AP
Omron Industrial
DIN Rail Power Supplies Power Supply
Data Sheet
0-1: $213.30
1-25: $193.90
S8VS-12024AP-F
S8VS-12024AP-F
Omron Industrial
DIN Rail Power Supplies 120W Sink Screwless Forecast Monitor
Data Sheet
0-1: $175.73
1-10: $171.82
10-25: $165.89
S8VS-12024A-F
S8VS-12024A-F
Omron Industrial
DIN Rail Power Supplies 90W Sink , Screwless Run Time Monitor
Data Sheet
0-1: $175.73
1-10: $171.82
10-25: $165.89
S8VS-12024B
S8VS-12024B

POWER SUPPLY SW 24VDC 5A W/RUN
Data Sheet
0-1: $132.31
1-25: $122.51
25-50: $114.35
50-100: $106.18
S8VS-12024BE
S8VS-12024BE
Omron Industrial
DIN Rail Power Supplies 240W Sinking , Screw Run Time w/o Alarm
Data Sheet
0-1: $147.62
1-10: $144.33
10-25: $139.36
25-50: $134.38
S8VS-12024BE-F
S8VS-12024BE-F
Omron Industrial
DIN Rail Power Supplies Source Screwless 180W Run Time Mon.
Data Sheet
0-1: $147.62
1-10: $144.33
10-25: $139.36
25-50: $134.38
