Product Summary
The HL5100 is a general-purpose limit switch. Its Actuator is the Sealed plunger.
Parametrics
HL5100 absolute maximum ratings: (1)Insulation resistance: 100 MΩ min. (at 500 VDC); (2)Contact resistance: 25 mΩ max. (initial value); (3)Rated frequency: 50/60 Hz; (4)Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude; (5)Shock resistance: Destruction 1,000 m/s2 min., Malfunction 300 m/s2 min.; (6)Ambient operating temperature: -5 to +65℃ (with no icing); (7)Ambient operating humidity: 35% to 95%RH.
Features
HL5100 features: (1)The Head, Box, and Cover mate with ridged surfaces to maintain; (2)strength; (3)A unique Head structure provides a large OT for smooth operation; (4)Easy-to-wire conduit opening design; (5)Ideal for application in printing machines, forming machines, and light machines (High Switches with high sealing characteristics, such as WL or D4C Switches, in locations subject to oil, water, or precipitation.); (6)Models with grounding terminals conform to the CE marking.; (7)Approved by CCC.

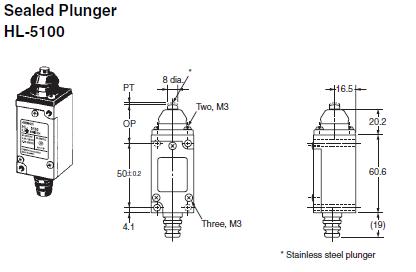

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HL5100-G |
Omron Industrial |
Basic / Snap Action / Limit Switches LS PIN PLUG GROUND T ERMINAL |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
HL5100-G |
Omron Industrial |
Basic / Snap Action / Limit Switches LS PIN PLUG GROUND T ERMINAL |
Data Sheet |
|
|
||||||||||||
