Product Summary

The E3JM-DS70M4 is an universal AC/DC photoelectric sensor.

Parametrics

E3JM-DS70M4 absolute maximum ratings: (1)Supply voltage: 24 to 240 VAC ±10%, 50/60 Hz; (2)Operation mode: Light-ON/Dark-ON, switch selectable; (3)Operation mode: Light-ON/Dark-ON, switch selectable; (4)Mutual interference protection Not: provided; (5)Indicators Light Incident (red LED) on models without timer; (6)Mounting Two side mount through hole or mounting bracket E39-L53 (supplied); (7)Connections Conduit 1/2-14 NPT; use 5-conductor cable of 6 to 8 mm (0.24 to 0.32 in) OD.

Features

E3JM-DS70M4 features: (1)Easy-to-wire terminal block; (2)Built-in timer offers selectable ON-delay, OFF-delay and one-shot; (3)Relay or transistor output models; (4)Polarized, through-beam and diffuse models; (5)Light-ON/Dark-ON operation switch selectable.

Diagrams

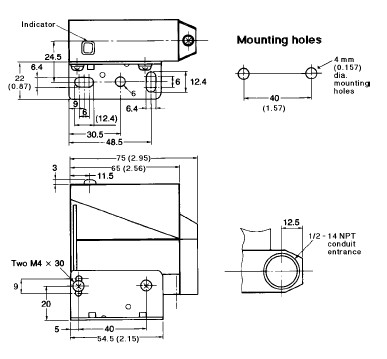

E3JM-DS70M4 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
E3JM-DS70M4-G
E3JM-DS70M4-G
Omron Industrial
Photoelectric Sensors PHOTO DIFFUSE RELAY OUTPUT DIS
Data Sheet
0-1: $151.68
1-5: $137.89
5-10: $126.40
10-25: $116.67
E3JM-DS70M4T-G
E3JM-DS70M4T-G

SENSOR PHOTOELECTRIC RELAY OUT
Data Sheet
0-1: $127.98
E3JM-DS70M4-US
E3JM-DS70M4-US
Omron Industrial
Photoelectric Sensors PES DIF 70CM SPDT
Data Sheet
0-1: $151.68
1-5: $137.89
5-10: $126.40
10-25: $116.67
E3JM-DS70M4T-US
E3JM-DS70M4T-US
Omron Industrial
Photoelectric Sensors 70CM PES DIF SPDT TMR
Data Sheet
0-1: $165.90
1-5: $150.82
5-10: $138.25
10-25: $127.61
