TM200DZ-24

TM200DZ-24, high power general use insulated type module, 1200V, 200A, 10W, MITSUBISHI

Rated 5 Rating 5 | reviews | Write a review

Price:: US $70.00~89.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	89.00 / Piece
51 ~ 80 :	80.00 / Piece
81 ~ 100 :	70.00 / Piece

PartNumber:: TM200DZ-24

Brand:: MITSUBISHI - MITSUBISHI | D/C: 09+

Availability:: Supply Ability: 1000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-19

From Other Seller

Part Number:TM200DZ-24
US $70.00 - 89.00
Quantity:

piece

Product Summary

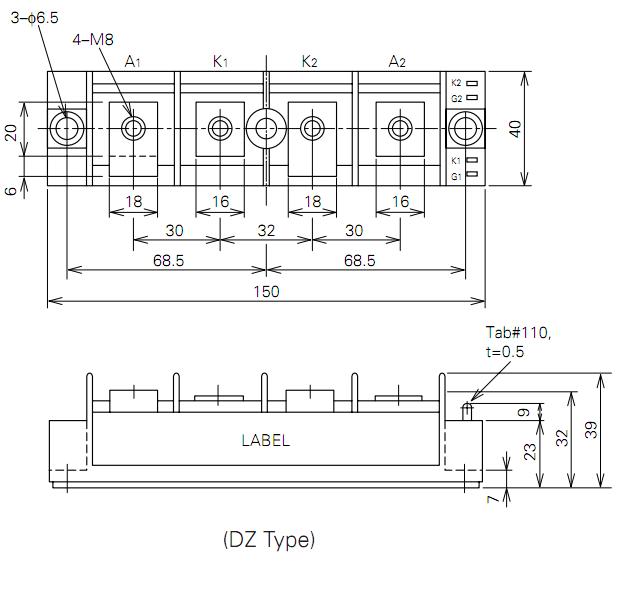

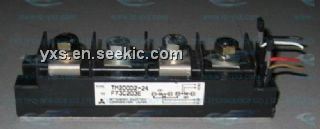

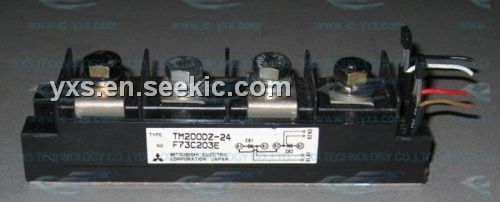

The TM200DZ-24 is a high power general use insulated type module. The applications of the TM200DZ-24 include DC motor control, NC equipment, AC motor control, Contactless switches, Electric furnace temperature control, Light dimmers.

Parametrics

TM200DZ-24 absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 1200V; (2)Non-repetitive peak reverse voltage, VRSM: 1350V; (3)DC reverse voltage, VR(DC): 960V; (4)Repetitive peak off-state voltage, VDRM: 1200V; (5)Non-repetitive peak off-state voltage, VDSM: 1350V; (6)DC off-state voltage, VD(DC): 960V; (7)RMS on-state current, IT(RMS): 310A; (8)Average on-state current, IT(av): 200A; (9)Surge (non-repetitive) on-state current, ITSM: 4000A; (10)I2t for fusing, I2t: 67000a2s; (11)Critical rate of rise of on-state current, di/dt: 100A/μS; (12)Peak gate power dissipation, PGM: 10W; (13)Average gate power dissipation, PG(AV): 3W.
