Product Summary

The SKiiP38AC126V2 is a 3-phase bridge rectifier. Applications include: invertr up to 39kV/A, typical motor power 22kW.

Parametrics

SKiiP38AC126V2 absolute maximum ratings: (1)VCES: 1200V; (2)On the conditions of Ta=25(70)℃, IC: 118(88)A; (3)On the conditions of tp≤1ms,ICRM: 210A; (4)VGES: ±20V; (5)Tj: -40 to +150℃.

Features

SKiiP38AC126V2 features: (1)Fast trench IGBTs; (2)Robust and soft freewheeling diodes in CAL technology; (3)Highly reliable spring contacts for electrical connections; (4)UL recognised file no.E63532.

Diagrams

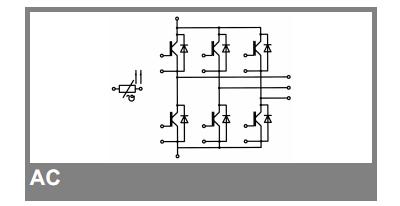

SKiiP38AC126V2 block diagram
