Product Summary

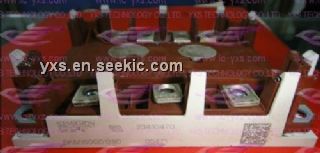

The SKiM150GD128D is a SPT IGBT Module. The applications of the SKiM150GD128D include switched mode power supplies, three phase inverters for AC motor speed control, switching (not for linear use).

Parametrics

SKiM150GD128D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 110A; (3)ICRM: 200A; (4)VGES: ±20V; (5)TJ(TSTG): -40 to 150 (125)℃; (6)Tcop: 125℃; (7)Viso: 2500V.

Features

SKiM150GD128D features: (1)N channel, homogeneous planar IGBT Silicon structure with n+ buffer layer in SPT (soft punch through) technology; (2)Low inductance case; (3)Fast & soft inverse CAL diodes; (4)Isolated by AI2O3 DCB (direct copper bonded) ceramic plate; (5)Pressure contact technology for thermal contacts; (6)Spring contyact system to attach driver PCB to the control; (7)Integrated temperature sensor.

Diagrams

SKiM150GD128D block diagram
