Product Summary

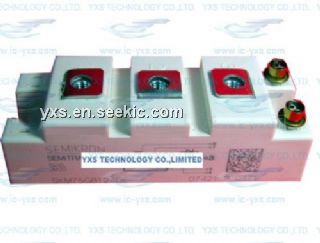

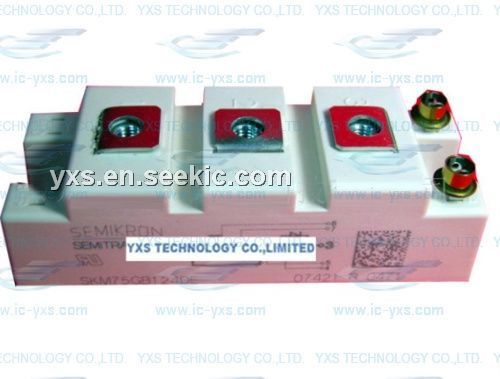

The SKM75GB124DE is a Low Loss IGBT Module. The applications of the SKM75GB124DE include switching (not for linear use).

Parametrics

SKM75GB124DE absolute maximum ratings: (1)VCES: 1200V; (2)IC: 100A; (3)ICRM: 100A; (4)VGES: ±20V; (5)Tvj,(Tstg): -40 to 150(125)℃; (6)Visol: 2500V; (7)IF: 75A; (8)IFRM: 100A; (9)IFSM: 550A.

Features

SKM75GB124DE features: (1)MOS input(voltage controlled); (2)N channel, homogeneous Si-structure (NPT-Non punch-through IGBT); (3)Low loss high density chips; (4)Low tail current; (5)High short circuit capability, self limiting to 6×Icnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DCB direct copper bonding technology without hard mould; (9)Large clearance(10mm) and creepage distance(20mm).

Diagrams

SKM75GB124DE block diagram
