Product Summary

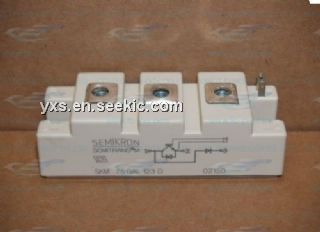

The SKM75GAL123D is an IGBT module. The applications of the SKM75GAL123D are AC inverter drives and UPS.

Parametrics

SKM75GAL123D absolute maximum ratings: (1)VCES: 1200V; (2)IC: Tcase=25℃: 75A, Tcase=80℃: 60A; (3)ICRM: 150A; (4)VGES: ±20V; (5)tpsc: 10us; (6)Inverse diode IF: Tcase=25℃: 75A, Tcase=80℃: 50A; (7)Inverse diode IFRM: 150A; (8)Inverse diode IFSM: 480A; (9)Freewheeling diode IF: Tcase=25℃: 95A, Tcase=80℃: 65A; (10)Freewheeling diode IFRM: 200A; (11)Freewheeling diode IFSM: 720A; (12)It(RMS): 200A; (13)Tvj: -40℃ to +150℃; (14)Tstg: -40℃ to +125℃; (15)Visol: 2500V.

Features

SKM75GAL123D features: (1)MOS input; (2)low inductance case; (3)very low tail current with low temperature dependence; (4)high short circuit capability, self limiting to 6*Icnom; (5)latch-up free; (6)fast & soft inverse CAL diodes; (7)isolated copper baseplate using DCB direct copper bonding technology; (8)large clearance and creepage distance.

Diagrams

SKM75GAL123D block diagram
