Product Summary
The SKM600GAL124D is a Trench IGBT Module. The applications of the SKM600GAL124D include AC inverter drives, UPS, electronic welders.
Parametrics
SKM600GAL124D absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=25(80)℃: 660(460)A; (3)ICRM, tp=1ms: 800A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN.: 4000V.
Features
SKM600GAL124D features: (1)Trench=trenchgate technology; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6 x Ic.

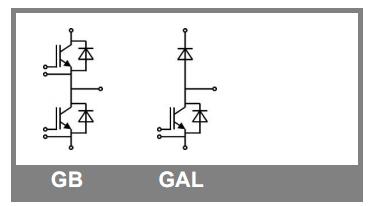

Diagrams
