Product Summary

The SKM400GB126D is a trench IGBT module. The typical applications of the SKM400GB126D are: AC inverter drives; UPS; Electronic welders.

Parametrics

SKM400GB126D absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=150℃: 470A; (3)ICRM: 600A; (4)VGES: ±20V; (5)tpsc VCC=600V; VGE≤20V; Tj=125℃: 10μs.

Features

SKM400GB126D features: (1)Homogeneous Si; (2)Trench=Trenchgete technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6 x Ic.

Diagrams

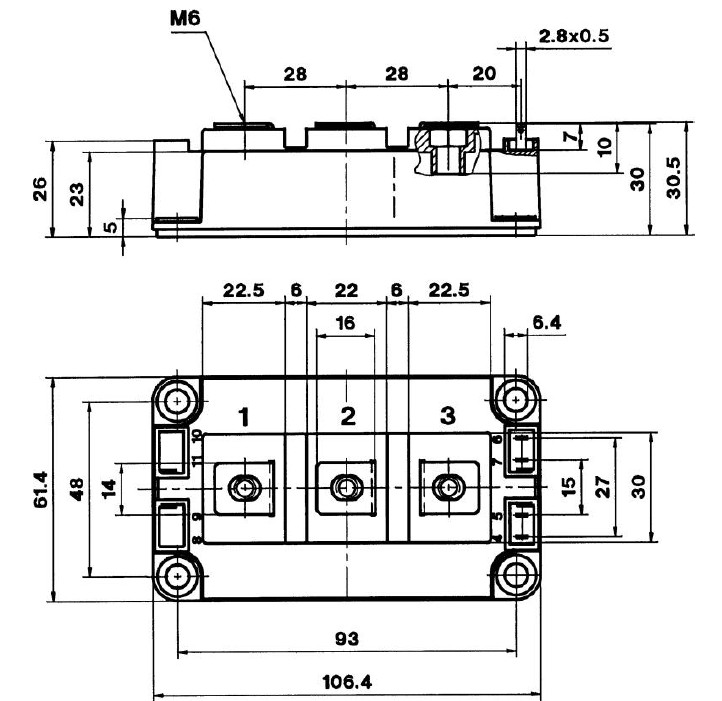

SKM400GB126D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SKM400GB126D
SKM400GB126D

Other


Data Sheet

Negotiable
