The SKM200GB12T4 is an IGBT module. The typical applications of the SKM200GB12T4 include AC inverter drives, UPS, Electronic welders at fsw up to 20kHz.
Parametrics
SKM200GB12T4 absolute maximum ratings: (1)VCES: 1200V; (2)IC: 310A when TC=25℃; 160A wehn Tc=80℃; (3)ICRM: 600A; (4)VGES: ±20V; (5)Tvj: -40 to 175℃; (6)Tstg: -40 to 125℃; (7)Visol: 4000V; (8)inverse diode, IF: 230A when Tc=25℃; 175A when Tc=80℃; IFRM: 600A; IFSM: 1100A.
Features
SKM200GB12T4 features: (1)IGBT4=4 Generation IGBT; (2)VCEsat with positive temperature coefficient; (3)high short circuit capability, self limiting to 6*Icnom; (5)soft switching 4 generation CAL diode.

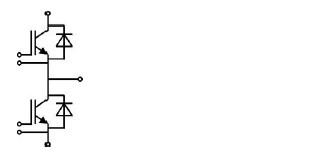

Diagrams
