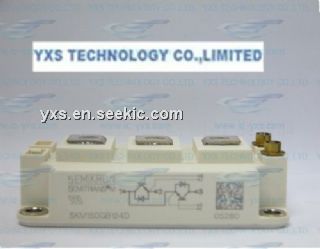

The SKM150GB124D is an IGBT Module. Applications of the SKM150GB124D are: Switching, AC inverter drieves, UPS.
Parametrics
SKM150GB124D absolute maximum ratings: (1)VCES: 1200 V; (2)IF: 150 A; (3)IC: 190 / 150 A at Tcase = 25/65 ℃; (4)ICRM: 200 A at Tp = 1ms; (5)VGES: ± 20 V; (6)IFRM: 200A; (7)Tj, (Tstg): -40 to +150 (125) ℃; (8)Visol: 2500 V at AC, 1 min.
Features
SKM150GB124D features: (1)MOS input (voltage controlled); (2)N channel, Homogeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 * Icnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DCB Direct Copper Bonding Technology; (9)Large clearance (12 mm) and creepage distances (20 mm).

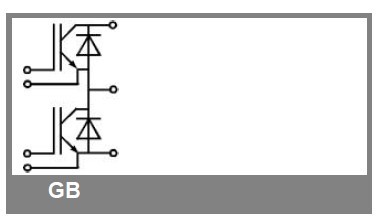

Diagrams
